High-performance 2.83" IPS TFT LCD display designed for industrial control applications, featuring excellent viewing angles and multiple brightness options.
| Parameter | Specification |
|---|---|
| Application | Industrial Control |
| Number of pixels | 480×640 pixels |
| Active Area | 43.2×57.6mm |
| Module Outline | 45.9×65.2×1.56mm |
| Aspect Ratio | 4:3 |
| Display Mode | Normally Black |
| Viewing Angle (CR>10) | 80/80/80/80 (Typ) |
| Contrast Ratio | 700MIN, 1000 (Typ) |
| NTSC | 71% (Typ) |
| LCM Brightness | 250cd/m² (Typ) 500cd/m² (Typ) 700cd/m² (Typ) |
| Interface | MIPI/SPI+RGB |
| Operating Temperature | -20~+70℃ |
| Storage Temperature | -30~+80℃ |
Industrial TFT Display Module ISO14000, 2.83-Inch Industrial TFT Display, IPS TFT Display Module
The JT-2.83IPS is a 2.83-inch portrait-mode IPS TFT LCD display module with wide viewing angles.
Product Description
1. Resolution: 480 × 640 pixels
2. Integrated ST77015 driver IC
3. Interface: Supports SPI + RGB OR MIPI
4. Operating voltage (Vdd): 1.6V to 3.3V (typical: 2.8V)
5. Brightness: 250 nits (typical)
6. Viewing mode: Portrait (landscape orientation and brightness customization available upon request)
7. Operating temperature: -20°C to +70°C
8. Storage temperature: -30°C to +80°C
This display is ideal for applications including industrial control, benchtop laboratory equipment, security systems, home automation, mini audio players, baby monitors, and other handheld devices.

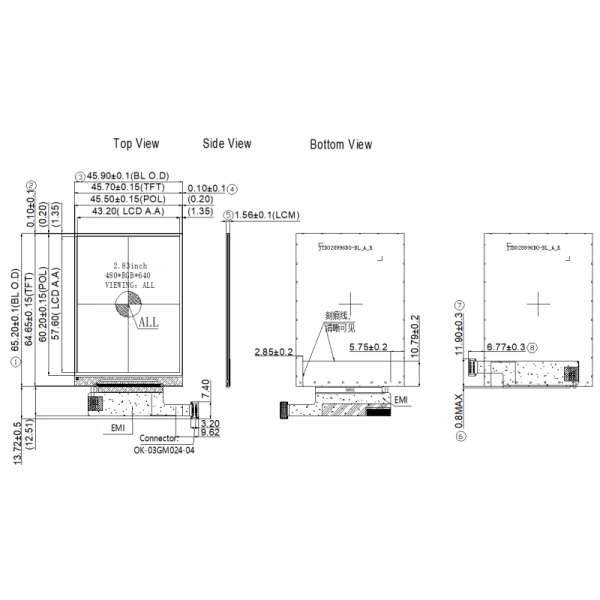

2.83 inch TFT 480*640 Touch Display Module Drawing
Quality Assurance
We implement a rigorous 3-step 100% testing process for each unit to ensure high product quality. Our QA manager brings over 14 years of experience in the LCD industry, while key manufacturing and quality operators each possess 7–8 years of specialized experience. Our team’s extensive expertise in the LCD field guarantees reliable quality for all customers.
All defective products are eligible for return and replacement, and all items are ROHS compliant.
