| Number of pixels | 240*320 pixels |
| Active Area | 36.72*48.96mm |
| Module Outline | 40.44*57*2.26mm |
| Aspect Ratio | 4:3 |
| Display Mode | Normally Black |
| Viewing Angle (CR>10) | 85/85/85/85 (Typ) |
| Contrast Ratio | 640MIN, 800(Typ) |
| NTSC | 70% (Typ) |
| LCM Brightness | 250cd/m² (Typ) 500cd/m² (Typ) 700cd/m² (Typ) |
| Interface | RGB/MCU/SPI |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
2.4-Inch TFT LCD Display, 240×320 Capacitive Touch Screen Module, 700 nits IPS TFT LCD
Description
The Jingtai Liquid Crystal Display Technology JT-2.4IPS is an IPS-type TFT LCD display with a size of 2.4 inches. It features a display resolution of 240×320. Thanks to the IPS technology, the product offers an 85-degree viewing angle in all directions.
The external dimensions of the display are 40.44× 57 × 2.26 mm. It uses the ST7789V2 driver IC and supports an MCU/SPI/RGB interface.
The operating temperature range of this product is –20 °C to +70 °C, meeting the requirements of the vast majority of product applications.
This display is equipped with a capacitive touch panel (CTP), which enhances ease of use and delivers a highly satisfactory user experience.

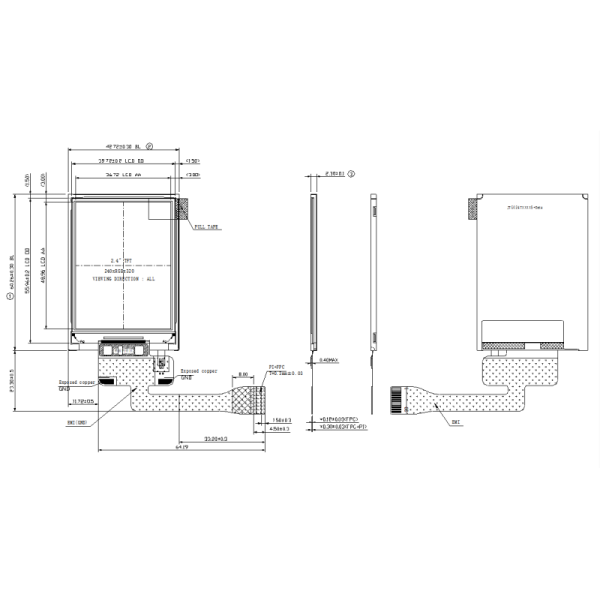

2.4 inch IPS TFT 240*320 Touch Display Module Drawing

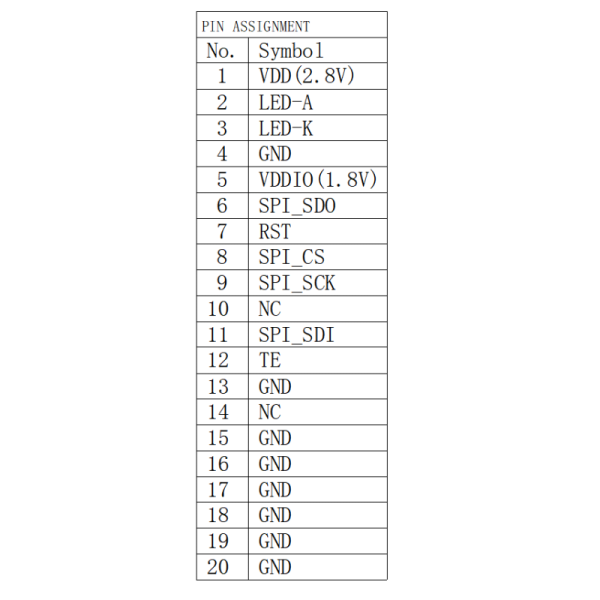

Maximun Absolute Limit
Item | Symbol | Value | Unit |
Power supply voltage for logic | VDD | 1.6~3.3 | V |
Input voltage | Vin | VDD+0.3 | V |
Operating temperature | Topr | -20 to 70 | °C |
Storage temperature | Tstg | -30 to 80 | °C |
LED Backlight specifications
Item | Symbol | MIN | TYP | MAX | UNIT | Test |
Supply Voltage | Vf | 3.0 | 3.2 | 3.4 | V | If=80mA |
Supply Current | If | - | 80 | - | mA | - |
Reverse Voltage | Vr | - | - | 5 | V | - |
Power dissipation | Pd | - | - | mW | - | |
Luminous Intensity for LCM |
| - | 800 | - | Cd/m2 | If=80mA |
Uniformity for LCM | - | 80 | - | - | ％ | If=80 mA |
Backlight Color | White | |||||
Optical Characteristics
No. | ITEM | Symbol | Conditions | Specification | Unit | |||
Min | Typ | Max | ||||||
1 | Response Time | Tr+Tf | 25℃ | - | 15 | - | Ms | |
2 | Transmittance (With PL) | T(%) | - | - | 7.1 | - | - | |
3 | Contrast Rate | Cr | θ=0, | - | 250 | - | - | |
4 | Viewing | Hor. | θR | CR>10 | - | 85 | - | Deg |
θL | - | 85 | - | |||||
Ver. | Θ+ | - | 85 | - | ||||
Θ- | - | 85 | - | |||||
