1L Capacity Laboratory Nano Bead Mill / Horizontal Sand Mill With Chiller Together

LTDN-series 1L capacity laboratory model nano grade horizontal bead mill / sand mill with chiller together

1. Features:

3.Standard configuration:

1) Outer chamber: Stainless steel 304

2) Inner tube: Sic ( silicon carbide)

3) Rotor and pins: ZrO2(ceramic)

4) Discharge sieve screen filter: Wear-resistant stainless steel

5) Mechanical seal: Burgmann from Germany

4. Technical Parameters:

Chamber capacity: 1L

Motor power: 4kw,Ex-proof,220V/50Hz/Single phase

Rotor speed: 0-2900RPM with inverter

Discharge type: Sieve screen filter with gap:0.2mm

Drive: Belt pulley

Bearing: SKF from Japan

Zirconia beads: CZY-95%,0.2-1.8mm(optional)

Zirconia beads filling: 3kg

With chiller or without

Feeding pump: 1”ARO pneumatic diaphragm pump

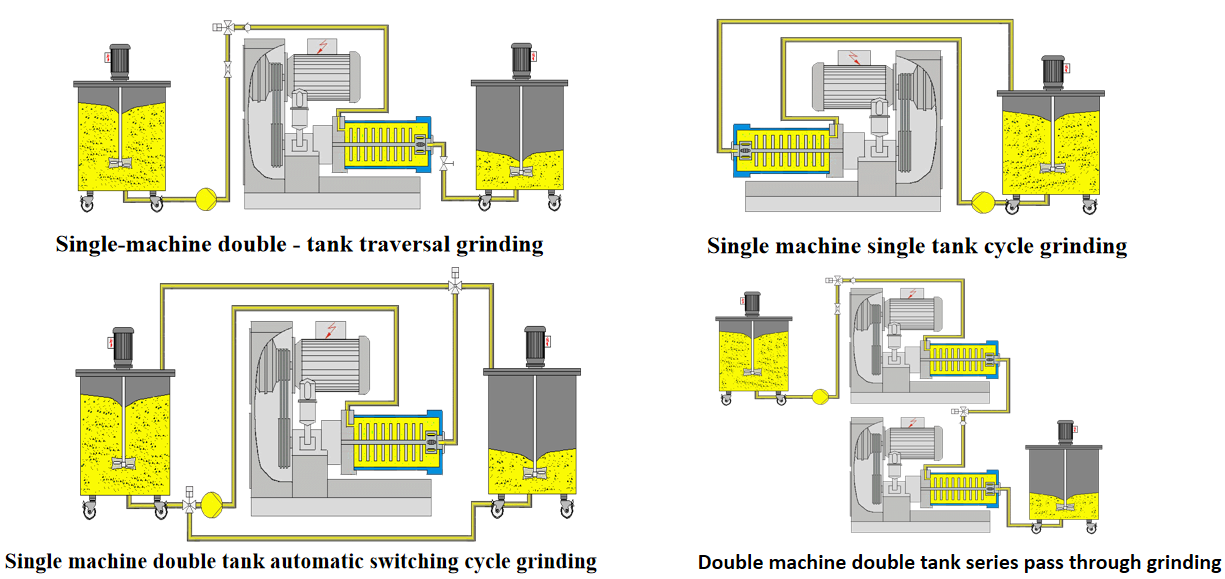

Grinding process

Structure classification of Horizontal Sand Mill

Material classification of Horizontal Sand Mill Spare Parts

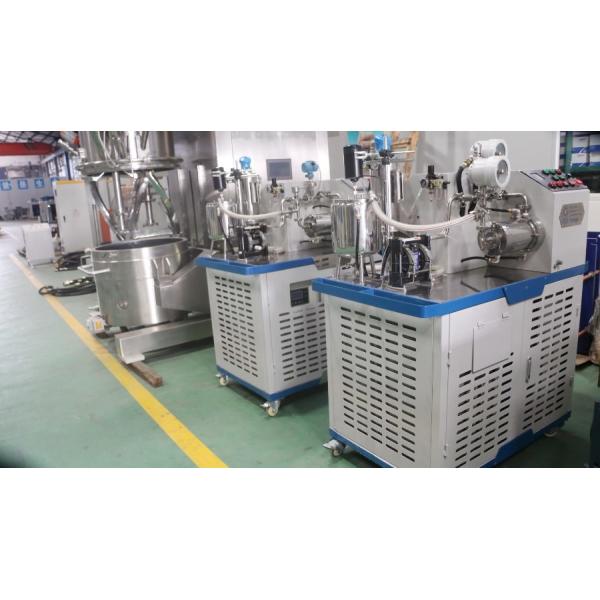

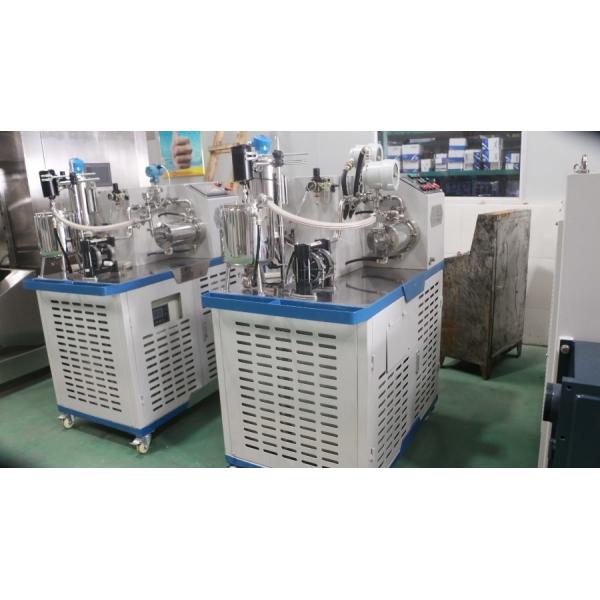

Real photos:

Working video

Industry

Our factory

Our certificates

Customer's case

Support and Services:

Product Technical Support and Services:

- Comprehensive technical support for installation, operation, and maintenance

- Troubleshooting assistance for any issues or malfunctions

- Guidance on optimizing the performance of the equipment

- Training programs for operators to ensure proper usage and maximize efficiency

Packing and Shipping:

Product Packaging:

The machine is carefully packaged in a wooden case to ensure safe transportation. The product is securely wrapped in bubble wrap to prevent any damage during shipping.

Shipping:

Orders are typically processed within 1-2 business days. Once shipped, you will receive a tracking number to monitor the delivery status of your sand mill/bead mill product. We partner with reliable shipping carriers to ensure timely delivery to your doorstep.

FAQ:

Q: What is a sand mill/bead mill?

A: A sand mill/bead mill is a grinding machine used to reduce particle size by agitating beads in a liquid medium.

Q: What are the typical applications of a sand mill/bead mill?

A: Sand mills/bead mills are commonly used in industries such as paint, ink, coatings, and pigments for wet grinding and dispersion of materials.

Q: How does a sand mill/bead mill work?

A: In a sand mill/bead mill, the grinding chamber contains small beads that are agitated by a rotating shaft, causing the beads to collide and break particles down to the desired size.

Q: What are the advantages of using a sand mill/bead mill?

A: Some advantages of sand mills/bead mills include efficient particle size reduction, uniform particle distribution, and the ability to process a wide range of materials.

Q: How to choose the right sand mill/bead mill for my application?

A: When selecting a sand mill/bead mill, factors such as the desired particle size, material viscosity, production capacity, and required fineness should be considered to ensure optimal performance for your specific application.

LTD Intelligent Equipment Co,Ltd.,founded in 1998,has been committed to the development andmanufacturing of wet grinding and mixing equipment in the chemical industry.The technology has reached the advanced level of domestic peers.

The company's research and development of sand mill machine series products have been widely used in industries,such as lithium iron phosphate,manganese-phosphate iron lithium,ceramic diaphragm,paint,ink,pesticide suspension,inkjet ink,printed color pulp,new nanomay,graphene,etc.Export to the United States,Brazil,South Korea,South Africa,Vietnam,Malaysia,India.Eavpt,SriLanka,Iran,Russia,Nepal,other countries and Taiwan region of China.

The company is the school research base of Environment and Resources of Wuhan University.It is a key internship unit of Graduate Students in Xiangtan University.In recent years,it has obtained more than 30 patents and qualification certificates.It is a complete product series,strong technical strength,and high cost-effective wet grinding system design units and equipment suppliers.
