| Categories | 4.3KW AC Servo Motor Driver |
|---|---|
| Model Number: | 180M27015B+M2034P |
| Brand Name: | LICHUAN |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | $649.80-756 / piece |
| Certification: | ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1~5Set 7Days/ 6~100Set 12Days/ ≥101Set Contact Supplier |
| Delivery Time: | 15 work days |
| Packaging Details: | Eco-friendly paper packaging |
| Phase: | Three-Phase |
| AC Voltage: | 380V |
| Efficiency: | IE 2 |
| Frequency: | 50/60Hz |
| Type: | Servo Motor |
| Rated Power ( w ): | 4.3KW |
| Rated Votage ( v ): | 380 |
| Rated current( A ): | 7.5 |
| Rated speed (rpm): | 1000 |
| Holding torque(N.m): | 27 |
| Weight (kg): | 25.5 |
| Bit: | 23 bit incremental |
| Motor size: | Flange 180 |
| Ambient Temperature: | -20℃-50℃ |
| Application: | CNC machine |
| Warranty: | 3 months ~ 1 year |
| Protect Feature: | Waterproof |
| Company Info. |
| Shenzhen Xinlichuan Electric Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
NO. | Product Name | Model / Description | Quantity |

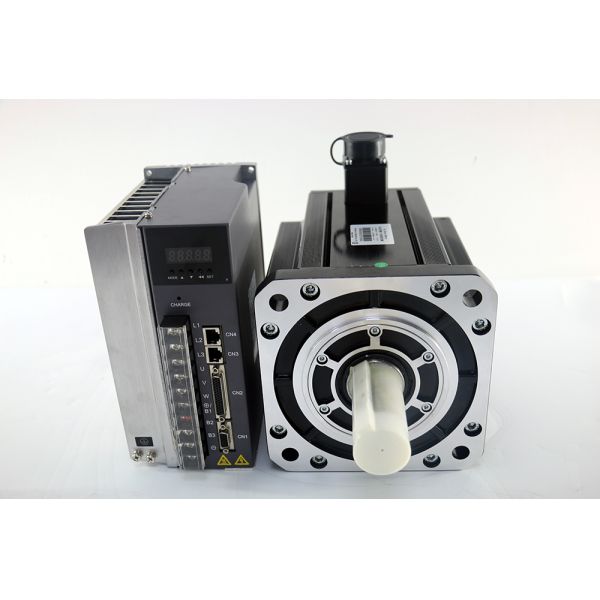

1 | Lichuan 4.3KW 180M27015B Servo Motor | 180M27015B | 1 |
2 | Lichuan 4.3KW AC Servo Driver | LCDA-4312C23-M2034P | 1 |
3 | Motor Cable | Standard (3m) | 1 |
4 | Encoder Cable | Standard (3m) | 1 |
5 | Servo Driver Instruction Book | Standard | 1 |

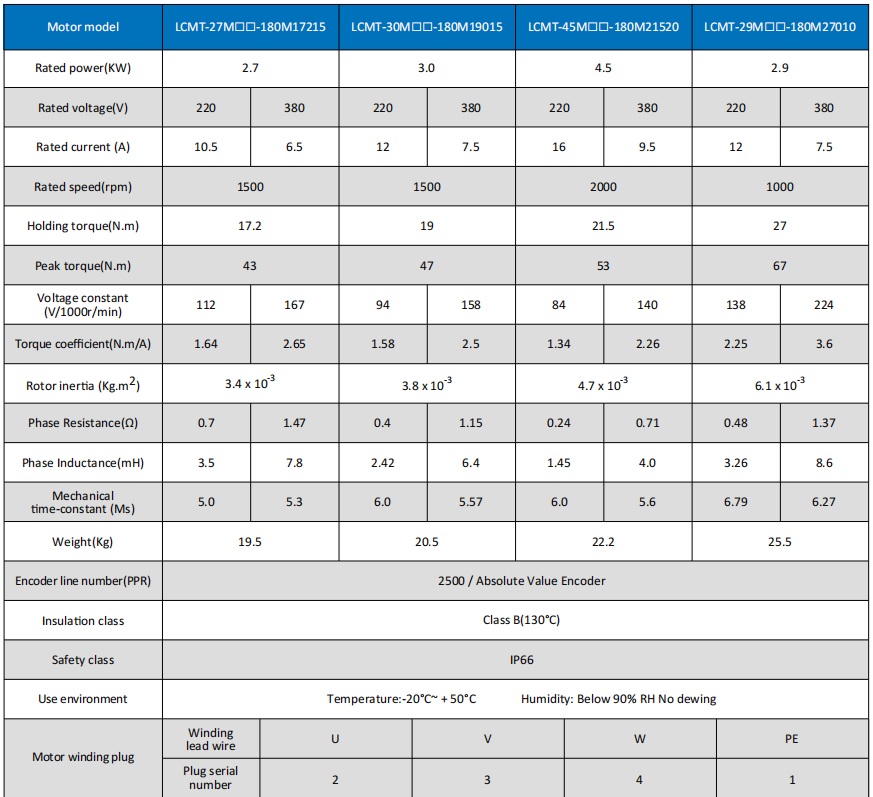

Product Name | 3 Phase Servo Motor Drive Kit |
Type | 180M27015B+M2034P |
Rated voltage(V) | 380 |
Rated current (A) | 7.5 |
Rated speed(rpm) | 1000 |
Holding torque(N.m) | 27 |
Peak torque(N.m) | 67 |
Weight(Kg) | 25.5 |
Bit | 23 bit incremental |
Safety class | IP66 |
|
