10 Tooth T38 Thread Retrac Button Bit Drilling For Medium Hard Hard Rock Formations

Categories Button Bit
Brand Name: HLDRILL
Place of Origin: CHINA
MOQ: 10PCS
Price: Please contact us
Payment Terms: T/T
Supply Ability: 3000 PCS Per month
Delivery Time: 7-15Days
Packaging Details: Wooden Box
Certification: ISO 9001 Certified
Face: flat、drop center 、New drop center
Material: Tungsten Carbide
Threadtype: R、T、S、SR、ST
Weight: 2 kg
Wearresistance: High
Diameter: 65mm
Usageenvironment: Mining, Construction, Quarrying
Compatibility: Compatible with most drilling rigs
Application: Drilling
Name: Button Bit
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

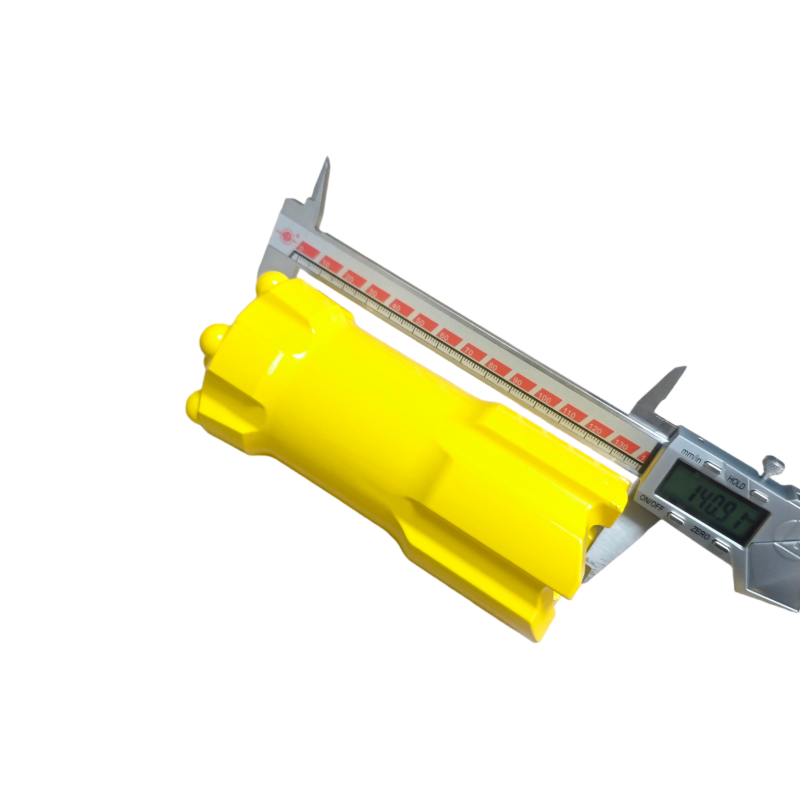

10 Tooth T38 Thread Retrac Button Bit Drilling For Medium Hard Hard Rock Formations

10-Tooth T38 Thread Retrac Design Button Bit for Efficient Rock Drilling
Product Specifications
Thread TypeT38
Diameter65mm
Button Configuration6 × 12mm, 3 × 10mm, 1 × 8mm
Skirt DesignRetrac
Weight2 kg
Carbide DesignSpherical buttons
Face DesignConcave face
Key Features
  • 10 tungsten carbide ball teeth for superior rock crushing capability
  • T38 threaded connection ensures reliable power transmission and sealing
  • Retrac skirt design enables easy withdrawal from jammed holes
  • High hardness and exceptional wear resistance for extended service life
  • Optimized for medium-hard to hard rock formations
Retrac Design Advantage: The innovative Retrac design allows the drill bit to be easily withdrawn if jamming occurs during drilling operations, significantly reducing the risk of bit sticking or breakage while improving overall drilling efficiency and safety.
Applications & Compatibility
This 65mm diameter T38 threaded button bit is part of our comprehensive drill bit range, which also includes 76mm and 89mm diameters to suit various drilling requirements.
Ideal Applications:
  • Blast hole drilling in mining operations
  • Anchor bolt hole construction in tunnel engineering
  • General drilling in medium-hard to hard rock formations
Optimal Rock Formations: Specifically engineered for limestone, granite, sandstone, and other abrasive, high-hardness rock types where the 10-tooth configuration and carbide ball teeth deliver maximum crushing efficiency.
