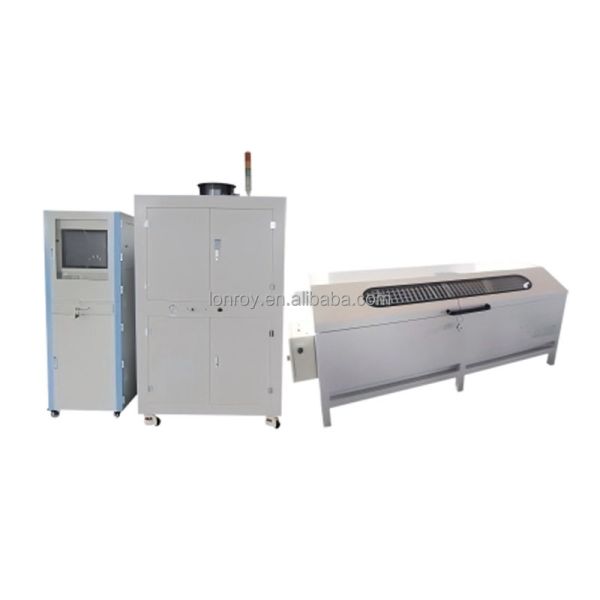

Hydraulic Cylinder Test and Load Test Bench Fully Automatic Computer Control Hydraulic Cylinder Test Stand

Categories Lab Test Machine
Type: Testing Machine
Accuracy Class: High Accuracy
Accuracy: ----
Brand Name: LONROY
Place of Origin: Guangdong, China
Application: Auto Testing, Laboratory Testing, Lab Testing
customized support: OEM, ODM, OBM
power: ---
Protection Class: Ip56
Voltage: 220V Electrical Equipment
warranty: 1 Year
Pressure Resistance: 5-60MPa, adjustable
Test Flow Rate: Maximum 200L/min
Maximum Number of Test Specimens: 1 piece/time
MOQ: 1
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Hydraulic Cylinder Test and Load Test Bench Fully Automatic Computer Control Hydraulic Cylinder Test Stand

Hydraulic Cylinder Test and Load Test Bench Fully Automatic Computer Control Hydraulic Cylinder Test Stand

Product Description

Standards Complied With

GB/T 15622-2005 Hydraulic Cylinder Test Methods, JB/T 10205-2010 Hydraulic Cylinder Technical Conditions

Application Scope

Hydraulic cylinder factory testing and load testing

Control Method

Fully automatic computer control

Test Items

Related test items for trial operation, starting pressure characteristics, pressure resistance, leakage, buffering, load efficiency, high temperature, durability, and stroke inspection

Hydraulic Cylinder Test and Load Test Bench Fully Automatic Computer Control Hydraulic Cylinder Test Stand

Technical Specification

Test Pressure

1-35MPa, adjustable

Hydraulic Cylinder Starting Pressure

0-1MPa, controlled by proportional throttle valve

Pressure Resistance

5-60MPa, adjustable

Test Flow Rate

Maximum 200L/min

Maximum Number of Test Specimens

1 piece/time

Applicable Products

Maximum hydraulic cylinder bore diameter range: ≤450mm, maximum hydraulic cylinder stroke ≤15m
