| Categories | 100G Module |
|---|---|
| Brand Name: | Huawei |
| Model Number: | QSFP28-100G-LR4 |
| Place of Origin: | china |
| MOQ: | 1 unit |
| Price: | 60-85 USD |
| Payment Terms: | L/C,D/A,D/P,Western Union,T/T,MoneyGram |
| Supply Ability: | 1000 units |
| Delivery Time: | 3-7work days |
| Packaging Details: | Original carton |
| transmission rate: | 100 Gbit/s |
| Interface type: | Duplex LC connector |
| Fiber type: | Single mode fiber (SMF, G.652) |
| Company Info. |
| Chongqing Yujia Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

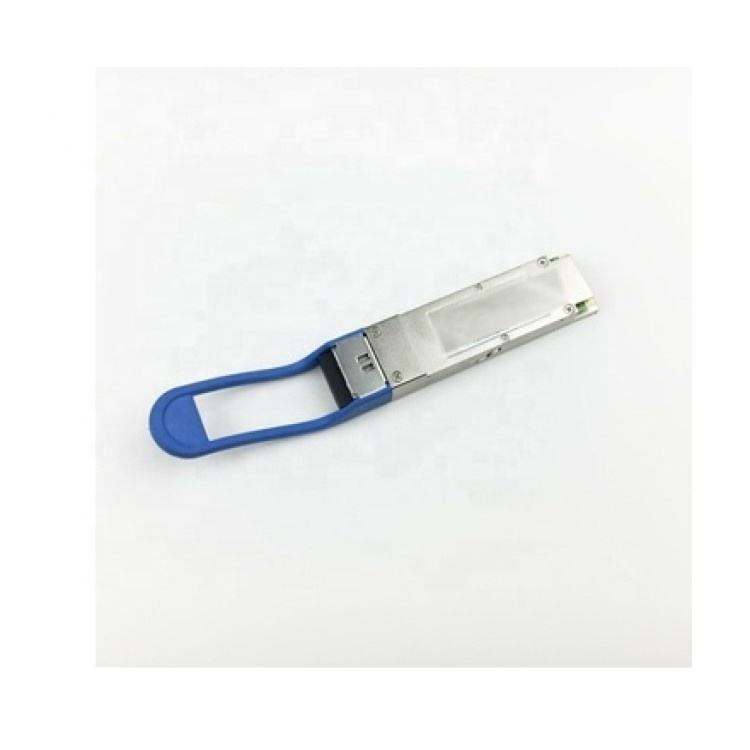

QSFP28-100G-LR4 02311KNU 100GBase-LR4 Optical Module-QSFP28-100G-Singlemode Module(1310nm,10km,LC)
Product Description
QSFP28-100G-LR4 is a 100Gbps high-speed optical module packaged in QSFP28. Its core function is to provide 100G Ethernet connectivity within a range of 10 kilometers for network devices such as core switches, routers, OLT upstream ports, etc
Details Images
Specification
| Item | Value |
|---|---|
| Basic Information | |
| Module name | QSFP28-100G-LR4 |
| Part Number | 02311KNU |
| Model | QSFP28-100G-LR4 |
| Form factor | QSFP28 |
| Application standard | 100GBase-LR4 |
| Connector type | LC |
| Optical fiber type | SMF |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| Transmission rate [bit/s] | 100 Gbit/s |
| Target transmission distance [km] | Single-mode (G.652) optical fiber: 10 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 1295 nm,1300 nm,1304 nm,1309 nm |
| Maximum Tx optical power [dBm] | 4.5 dBm |
| Minimum Tx optical power [dBm] | -4.3 dBm |
| Minimum extinction ratio [dB] | 4 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity (AVG) [dBm] | -8.6 dBm |
| Overload power (AVG) [dBm] | 4.5 dBm |
|
