Parallel Operation Ready 48V 5.5kw 6.2kw Single Phase Hybrid Solar Inverter Pure Sine Wave MPPT Off Grid with WiFi Monitoring

Parallel Operation Ready 48V 5.5kw 6.2kw Single Phase Hybrid Solar Inverter Pure Sine Wave MPPT Off Grid with WiFi Monitoring

Parallel Operation Ready 48V 5.5kw 6.2kw Single Phase Hybrid Solar Inverter Pure Sine Wave MPPT Off Grid with WiFi Monitoring
Parallel Operation Ready 48V 5.5kw 6.2kw Single Phase Hybrid Solar Inverter Pure Sine Wave MPPT Off Grid with WiFi Monitoring
Categories Off Grid Hybrid Solar Inverter
Brand Name: 1stess
Model Number: GM (PV60-500VDC) 6200-48PL
Certification: CE, IEC
Place of Origin: China
MOQ: 1 piece
Price: To be negotiated
Payment Terms: L/C,T/T
Supply Ability: 2000 pieces per month
Delivery Time: 30 days
Packaging Details: carton box
Charging Mode: MPPT
Operating Temperature: -10°C To 50°C
Inverter Type: Off Grid inverter
Frequency: 50Hz/60Hz
Nominal Output Voltage: 220VAC/230/240VAC
Communication Interface: RS232+RS485+ External CT Port
Acceptable Input Voltage Range: 170-280VAC or 90-280VAC
Size: 450*300*130mm
Waveform: Pure Sine wave
Output Current: 120A
Weight: 12kg
Contact Now
Company Info.
Shenzhen First Tech Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Parallel Operation Ready 48V 5.5kw 6.2kw Single Phase Hybrid Solar Inverter Pure Sine Wave MPPT Off Grid with WiFi Monitoring

Parallel Operation Ready 48V 5.5kw 6.2kw Single Phase Hybrid Solar Inverter Pure Sine Wave MPPT Off Grid with WiFi Monitoring

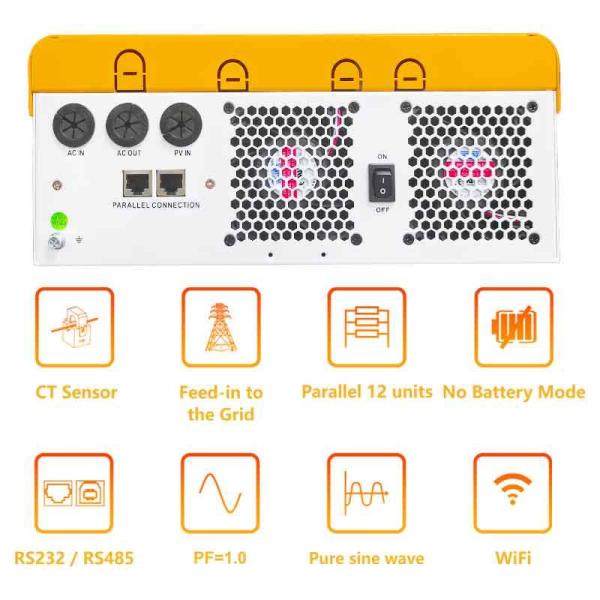

Key Features
  • Self-consumption and Feed-in to the grid
  • Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
  • Backflow prevention via external CT sensor and grid connection function
  • Parallel operation up to 12 units in 1-phase or 3-phase
  • Direct Plug WiFi Dongle Supported
  • Output power factor 1.0
  • High PV input voltage range 500Vdc Max
  • Built-in MPPT solar controller 100/120A

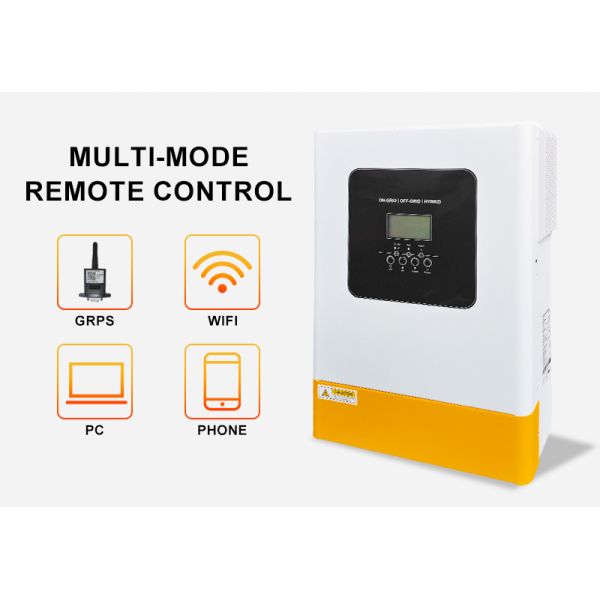

  • WiFi remote monitoring optional
  • Detachable dust cover for harsh environment
  • User-adjustable charging current and voltage
  • Programmable supply priority for PV, Battery or Grid
  • Support multiple output priority: SBU/SUB/SUF/ZEC
  • EQ function to optimize battery performance and extend lifecycle

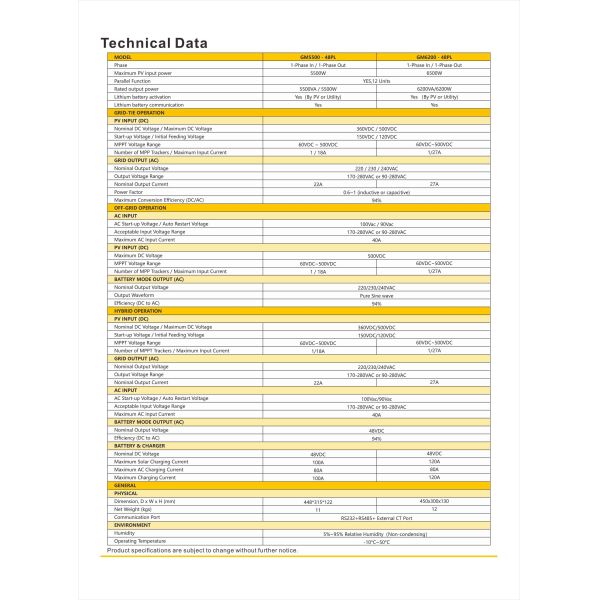

Technical Specifications
ParameterGM5500-48PLGM5500-48PL
Phase1-Phase In/1-Phase Out1-Phase In/1-Phase Out
Maximum PV input power5500W6500W
Nominal Output Voltage220/230/240VAC220/230/240VAC
WaveformPure Sine wavePure Sine wave
Battery Voltage48VDC48VDC

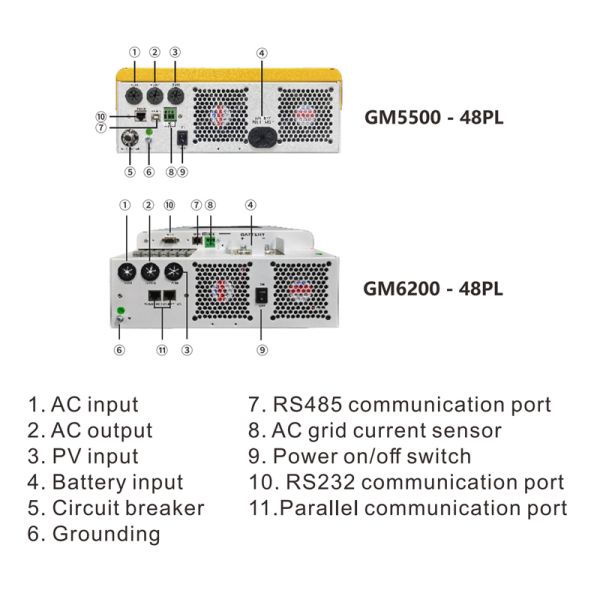

Communication PortRS232+RS485+External CT PortRS232+RS485+External CT Port
Max. Solar Charge Current100A120A
Dimension, D x W x H(mm)448*315*122450x300x130
Product Images
GM Series Hybrid Solar Inverter front view GM Series Hybrid Solar Inverter side view GM Series Hybrid Solar Inverter display panel GM Series Hybrid Solar Inverter connection ports GM Series Hybrid Solar Inverter installation diagram GM Series installation in Southeast Asia environment GM Series technical specifications close-up GM Series monitoring interface display
Southeast Asia: Mastering Monsoon Climates and Grid Instability

Target Countries: Philippines, Indonesia, Vietnam, Thailand, Malaysia.

Market Insight: The ASEAN region is projected to be the fastest-growing market for hybrid inverters, driven by frequent grid fluctuations and a rapid shift toward residential solar.

Regional Challenges & The GM Series Solution:

Southeast Asia presents a paradox: abundant sunshine interrupted by prolonged monsoon rains, coupled with aging grid infrastructure. For businesses and homeowners, power stability is not a luxury but a necessity.

The GM Series directly addresses this with its wide MPPT voltage range (60-500VDC). This feature is critical in overcast conditions; it allows the inverter to harvest energy during low-light periods at dawn and dusk, as well as during heavy cloud cover, maximizing the "self-consumption" window. Furthermore, the user-adjustable charging current is a vital tool for protecting expensive battery assets in tropical heat, allowing installers to fine-tune parameters to extend battery life. The programmable supply priority (SBU/SUB) ensures that critical loads remain powered seamlessly, automatically switching to battery mode during the grid sags common to developing island nations.
