PM PBS/PBC 1×2 High Precision Polarization Maintaining Beam Splitter / Combiner

High-Precision Polarization-Maintaining Beam Splitter/Combiner (PM PBS / PBC - 1×2)

1. Product Overview

GRACYFIBER's polarization-maintaining beam splitter/combiner (PM PBS/PBC) is a high-precision 1×2-port fiber optic device designed for efficient separation or combining of optical signals by controlling the polarization state of light, maintaining extremely stable polarization state transmission across all ports.

2. Product Features

Parameter		Unit		Value
Port Type		-		1x2
Operating Wavelength		nm		980		1030,1064		1310, 1480, 1550		1260~1620
Operating Bandwidth		nm		±30		±20		±40		/
Grade		-		P	A	P	A	P	A	P	A
Typ. Insertion Loss		Max	nm	0.6	0.7	0.6	0.7	0.4	0.5	0.5	0.6
Insertion Loss		Max	nm	0.8	0.9	0.8	0.9	0.6	0.7	0.7	0.8
Extinction Ratio (Onlyf or PBS)		Min	nm	22	20	22	20	22	20	20	18
Return Loss		Min	dB	50
Directivity		Min	dB	50
Power Handing		Max	mW	300
Fiber Type	Port1&2	-		PM980				PM1300 / PM 1550
Fiber Type	Port3	-		HI 1060				SMF-28e
Fiber Coating		mm		0.25 / 0.9/2.0/3.0mm Red/Black loose tube
Fiber Length		cm		100
Connector		-		FC/APC,FC/UPC,or Customized

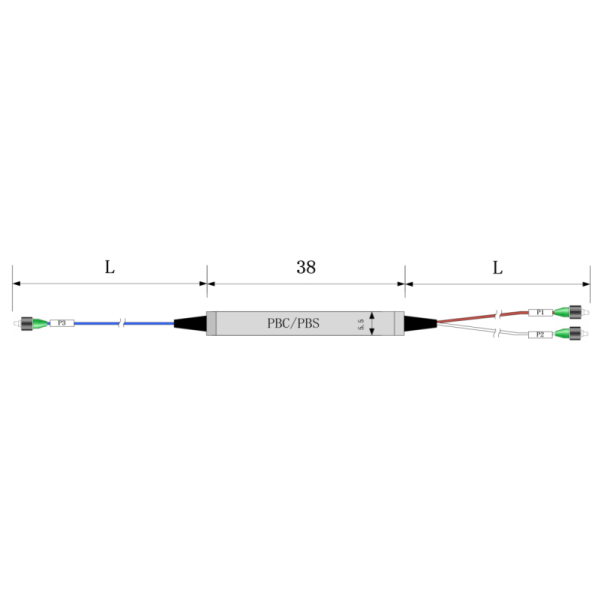

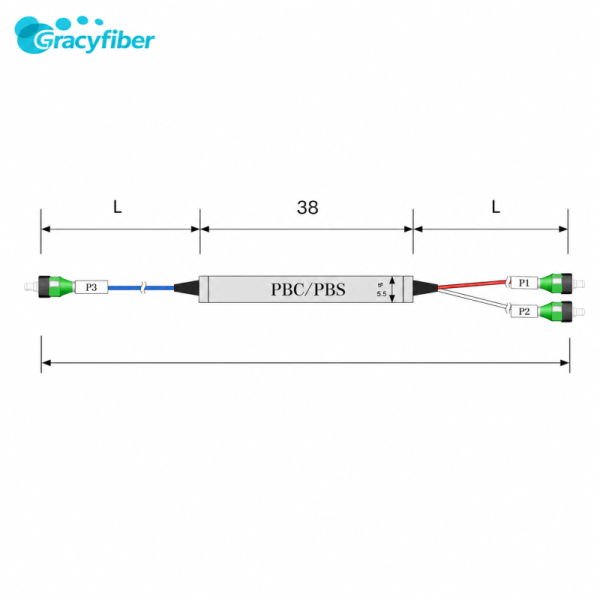

Dimensions (HxWxD)	250μm Bare Fiber	mm		φ5.5×35
	900μm Loose Tube	mm		φ5.5×38
	2mm/3mm Tube	mm		90×20×10,100×80×10
Operating Temperature		°C		-5~65
Storage Temperature		°C		-40~85

Remark:

* Above specifications are for devices without the connectors.

* For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

* The PM fiber and the connector key are aligned to the slow axis. fast axis is blocked.

(Designed to solve your polarization crosstalk, high power pump loss, and system integration challenges)

Features: Excellent polarization extinction ratio (ER ≥ 22 dB) and ultra-low insertion loss.

Features: Full wavelength coverage (980 nm to 1620 nm) and bidirectional reversible operation (PBS/PBC)

Features: Precision Slow Axis Alignment

3. Applications

Coherent Communication & Polarization Multiplexing
Laser Pumping & Amplification Systems
Interferometry & FOG
Quantum Optics & Research Systems
LiDAR & Free-Space Optics
Optical Test & Measurement

4. Part Number Configuration

PBS/PBC	1	2	3	4	5	6	7	8	9	10
	Working Wavelength	Package Dimension	Port1&2 Fiber	Port3 Fiber	Jacket Type	Port1&2 Color	Output Color	Fiber Length	Connector Type	Working Axis
	XX	XX	XXX	XXX	XX	XX	X	XX	X	X
PBC/S	98=980nm	53=Ø5.5 × 35	P98=PM980	98=Hi1060	02=250um Bare fiber	RW=Red/White @PM Fiber	W=White @SM Fiber	01=0.1m	0=No	B=Dual Axis
	10=1060nm	54=Ø5.5 × 38	P13=PM1300	SM=SMF-28e	06=0.6mm Loose Tube	WW=White @1060/SM Fiber	R=Hi 1060 Fiber	05=0.5m	1=FC/UPC	S=Slow Axis
	13=1310nm	90=90 × 20× 10	P15=PM1550	P1=PM Fiber, Slow Axis Align to Port 1	09=0.9mm Loose Tube	XX= Customized	B=Blue @PM Fiber	10=1.0m	2=FC/APC	F=Fast Axis
	15=1550nm	PS=100 ×80× 10	XXX= Customized	P2=PM Fiber, Slow Axis Align 45° to Port	20=2.0mm PVC Tube		XX= Customized	30=3.0m	3=SC/UPC	X= Customized
	XX= Customized	XX= Customized		XXX= Customized	30=2.0mm PVC Tube			XX= Customized	4=SC/APC
					XX= Customized				5=LC/UPC
									6=LC/APC
									X= Customized

Example Part Number

PBS-1354P13P109RWB10-2S

PM Polarization Beam Splitter,Center wavelength 1310 nm,Steel housing Ø5.5 × 38, Fiber is PM 1300,Port 3 fiber type PM1310 with slow axis aligned to Port 1,Fiber length 1 m with 0.9mm Losse Tube (Color= Port1:Red,Port2:White,Port3:Blue) ,FC/APC connector, slow axis aligned to key.
