| Packaging Details: | 61*24*16cm |
| Mounting: | 1U And 2U Rack Mountable |
| Place Of Origin: | Shenzhen |
| Product Type: | 8 / 16 ports Artnet Controller |
| Power Input: | AC 100~240V |
| Included Items: | 1 X Art-Net Node 1 X RJ45 Cable 1 X Power Cord |
| Model Number: | LCL-AN-16-D |
| Red and Green LED: | Indicate Working Condition |
| Compatible System: | Windows And IOS |
| Material: | Metal Housing, Oxidized In Black |
| Dimensions: | 483*200*88mm |
| Brand Name: | Ledcolourlight |
| LCD Display: | Show IP Address |
| MOQ: | 1 |
| Port In / Out: | RJ45 |
| Delivery Time: | 1~2 Working Days |
| DMX Outputs: | 3XLR / 5XLR Female |
| Control Mode: | Artnet To DMX |
| Payment Terms: | T/T,PayPal |
| Company Info. |
| Shenzhen Ledcolourlight Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
► 8/16-Universe Conversion: Converts ArtNet to 16 universes of DMX512 (8/16×512 channels).
► LCD Status Display: Shows IP address and system status for quick configuration.
► Rack-Mountable Design: 1U/2U standard 19” rack mountable for easy integration.
► Flexible Connectivity: Dual RJ45 ports (input + linkable output) and 8/16 × 3/5-pin XLR
DMX outputs.
► LED Status Indicators: Red/green LEDs for power and activity monitoring.
► Wide Operating Range: Works from -40°C to 50°C with passive cooling.
► Universal Power: AC 100-240V input for global compatibility.
► Third-Party Compatible: Works with major lighting software for pixel mapping and live
control.
| Power Input | AC 100-240 VAC, 50-60 Hz |
| Power Consumption | 15W Max |
| Dimensions (L x D x H) | 483*200*88mm |
| DMX Ports | 3XLR / 5XLR Female |
| DMX Outputs | 16 Ports * 512 DMX Channels |
| Port In / Out | RJ45 |
| IP Rating | IP20 |
| LCD Display | Show IP Address |
| Red and Green LED | Indicate Working Condition |
| Material | Metal Housing, Oxidized In Black |
| Included Items | 1 X Art-Net Node, 1 X RJ45 Cable, 1 X Power Cord |

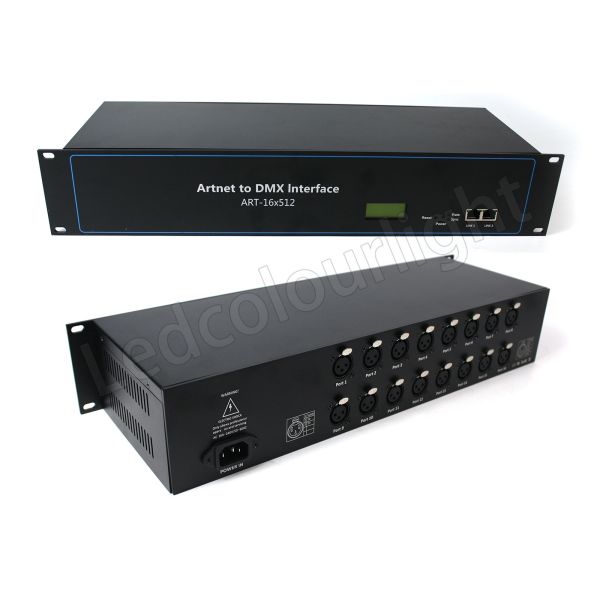

16x512 ArtNet DMX Node | Professional LED Pixel Controller
The 16x512 ArtNet DMX Node is a high-performance LED controller engineered for demanding lighting installations, delivering seamless conversion between ArtNet Ethernet protocols and DMX512 signals. This ArtNet LED pixel controller is designed for both professionals and enthusiasts, providing precise management of lighting effects, colors, and patterns via the powerful ArtNet/DMX protocol.
Built in a rugged black oxidized metal housing with a 1U/2U rack-mountable design, the unit includes 16 independent DMX512 outputs (each supporting 512 channels), available with 3-pin or 5-pin XLR female connectors. Dual RJ45 Ethernet ports (input + linkable output) enable straightforward network connectivity and daisy-chaining, while a clear LCD display prominently shows the device’s IP address for easy network integration. Red/green LED indicators provide real-time power and activity status, simplifying troubleshooting.
The controller supports either 8 or 16 DMX universes, making it ideal for large-scale entertainment, architectural, and commercial lighting projects. It is compatible with major lighting software and third-party control systems, including Madrix, Madmapper, Resolume, and others, enabling precise pixel mapping and synchronized effects.
Designed for continuous operation in demanding environments, the node features a wide operating temperature range (-40°C to 50°C) and passive cooling. It is powered by universal AC 100-240V input with low power consumption (max 15W) and is available with US, UK, Chinese, or European standard power cords. The comprehensive package includes: 1 x ArtNet Node, 1 x RJ45 Cable, and 1 x Power Cord.
Combining advanced technology with practical, user-friendly features, this ArtNet to DMX controller delivers reliable, scalable, and high-performance lighting control for permanent installations, live events, and everything in between.
Perfect for large-scale stage lighting, live events, architectural facade lighting, theme park installations, and commercial lighting projects. The Artnet node supports scalable control systems for real-time performance, making it ideal for both permanent and temporary setups.
Q1: How many DMX universes does this node support?
A: It converts ArtNet signals into 8 or 16 independent universes of
DMX512 (16×512 channels).
Q2: Is it rack mountable?
A: Yes, it features a 1U/2U standard 19” rack mountable design.
Q3: What is the power input range?
A: It accepts universal AC 100-240V input (50/60Hz) for global use.
Q4: Can it link multiple nodes together?
A: Yes, the linkable RJ45 output allows you to connect additional
nodes on the same network.
Q5: What kind of support and warranty do you offer?
A: We provide 24/7 technical support for setup, configuration, and troubleshooting, plus a standard 2-year warranty. For large projects, we also offer pre-sales consulting, custom firmware options, and on-site installation guidance upon request.
|
