| Categories | JFETs |
|---|---|
| Ciss-Input Capacitance: | - |
| Pd - Power Dissipation: | - |
| Drain Current (Idss): | - |
| FET Type: | - |
| RDS(on): | - |
| Gate-Source Breakdown Voltage (Vgss): | - |
| Gate-Source Cutoff Voltage (VGS(off)): | - |

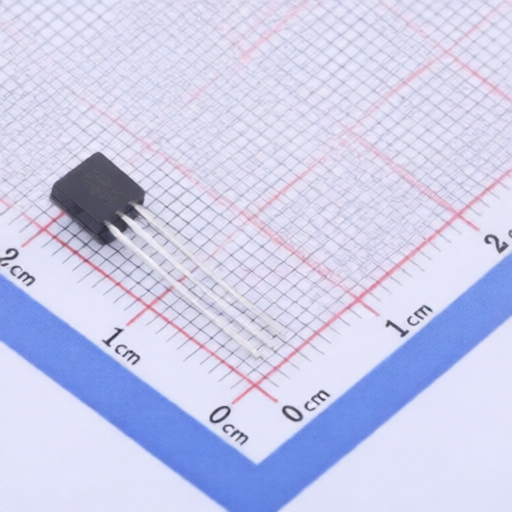

| Description: | TO-92-3L JFETs RoHS |
| Mfr. Part #: | J113 |
| Model Number: | J113 |
| Package: | TO-92-3L |
| Company Info. |
| Hefei Purple Horn E-Commerce Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The J111, J112, and J113 series are N-Channel switches designed for low-level analog switching, sample and hold circuits, and chopper-stabilized amplifiers. These devices offer interchangeable source and drain terminals and are available in Pb-Free options.
| Part Number | VDG (Max) | VGS (Max) | IGF (Max) | TJ, TSTG (C) | PD (Max) (mW) | RJC (C/W) | RJA (C/W) | V(BR)GSS (Min) | IGSS (Max) | VGS(off) (V) | ID(off) (Max) | IDSS (mA) | rDS(on) () | Cdg(on), Csg(on) (pF) | Cdg(off) (pF) | Csg(off) (pF) |
| J111 / J112 / J113 | 35 | -35 | 50 | -55 to 150 | 625 | 125 | 200 | -35 | -1.0 nA | 111: -3.0 to -10.0 112: -1.0 to -5.0 113: -0.5 to -3.0 | 1.0 nA | 111: 20 112: 5.0 113: 2.0 | 111: -30 112: -50 113: -100 | -28 | -5.0 | -5.0 |
| MMBFJ111 / MMBFJ112 / MMBFJ113 | 35 | -35 | 50 | -55 to 150 | 350 | - | 357 | -35 | -1.0 nA | 111: -3.0 to -10.0 112: -1.0 to -5.0 113: -0.5 to -3.0 | 1.0 nA | 111: 20 112: 5.0 113: 2.0 | 111: -30 112: -50 113: -100 | -28 | -5.0 | -5.0 |
|
