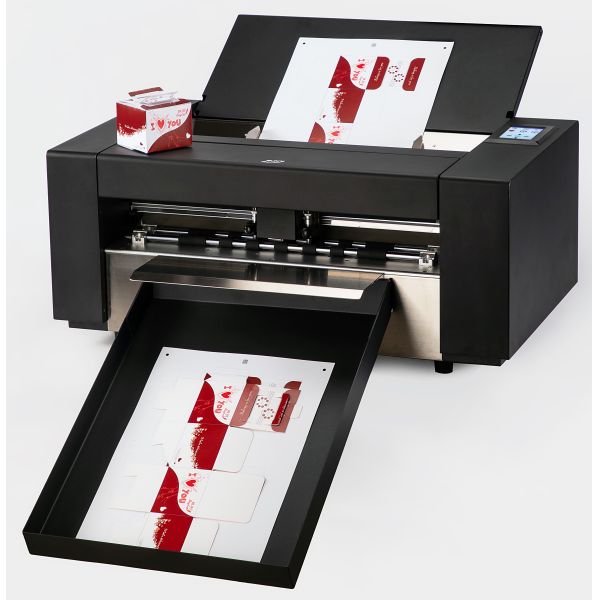

Anycut A3 A4 Sheet Automatic Feeding Label Cutter Automatic Cutting
Machine Digital CCD Camera Paper Cutter
This intelligent digital cutting machine is specially designed for
printing shops, graphic design studios, advertising workshops and
small printing factories. It can meet all customized needs
including business cards, special-shaped cards, tags, PET
self-adhesive stickers, car dashboard films, paper box creasing and
cutting. Easy operation, high efficiency and stable performance
make it the core equipment to improve productivity.
1.Extremely Stable Feeding, No Paper Jam
Precise paper feeding structure fits card paper, PET film,
self-adhesive, coated paper and other materials. Smooth and
accurate feeding, stable long-time working, no jam and no
deviation.
2.Full Cut, Half Cut & Creasing in One Step
Support full cut, half cut, creasing and cutting at the same time.
Neat box creasing, smooth cutting edge without burrs, no secondary
processing needed, greatly improve working efficiency.
3.All-Round Special-shaped Custom Cutting
Perfect for personalized business cards, special-shaped cards,
tags, PET stickers, car dashboard films, paper boxes and any other
custom shape cutting.
4.Self-Developed Intelligent Software, One-Click Operation
With professional self-developed software, it can auto extract
pattern outline and generate positioning points with one click, no
manual drawing needed, easy for beginners.
5.High Precision & Premium Finished Effect
High cutting accuracy, smooth edge, perfect fitting for dashboard
film, high-grade texture for cards, greatly improve product quality
and customer satisfaction.
Application:
Printing shops, graphic design studios, custom stores, packaging
factories, small printing houses, gift & craft shops
| MODEL | ZKSVD370 |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | L 890mm*W 580mm*H 570mm |
| Machine size | L 768mm*W 455mm*H 336mm |
| Gross/Net weight | 47kgs/42kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 1600g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
Anycut A3/A4 Sticker Label Cutting Machine with Double Head Servo Automatic 1600mm/s Paper Cutter
