12V 100A Local Control Reversing DC Power Supply 220V Single Phase Input Polarity Switching Rectifier

12V 100A Local Control Reversing DC Power Supply 220V Single Phase Input Polarity Switching Rectifier

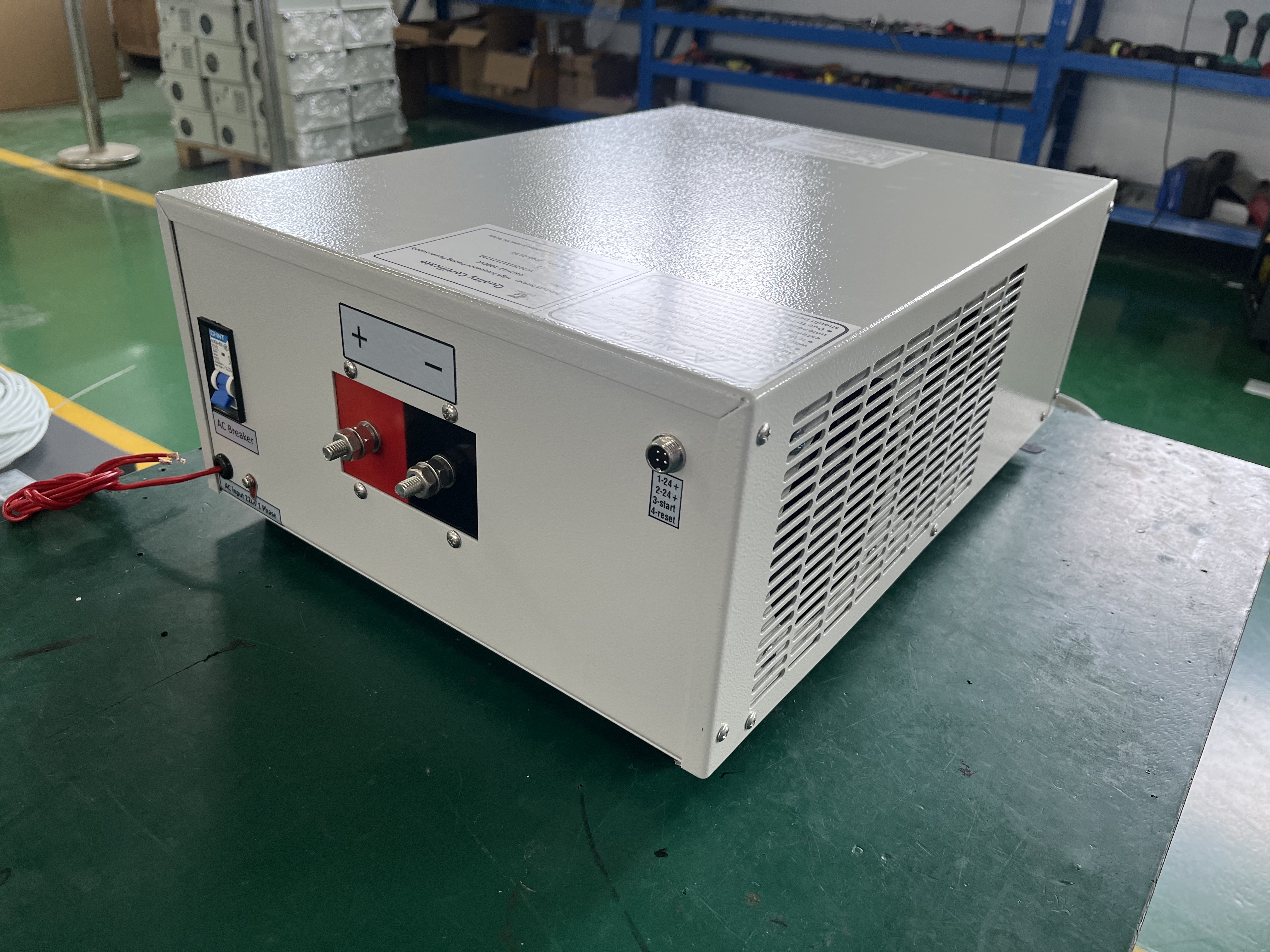

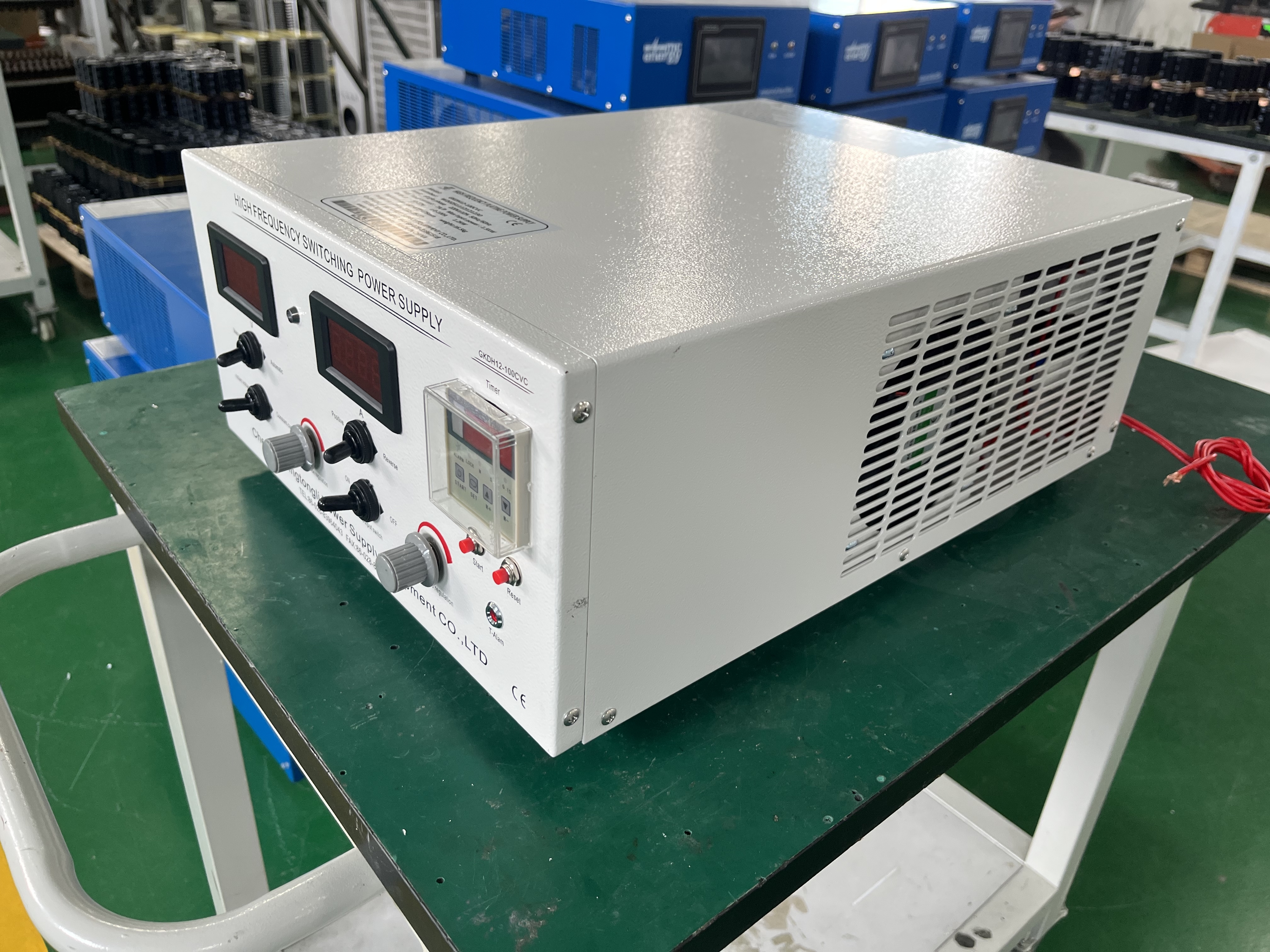

This 12V 100A reversing power supply with local control panel is developed for electrochemical applications requiring reliable polarity change operation, including reverse plating, surface treatment, and laboratory electrolysis processes. The built-in control interface allows operators to conveniently set and adjust output parameters and reversing cycles directly on the unit without an external controller. Featuring 220V single-phase input, the power supply provides stable DC output, accurate current regulation, and flexible reverse timing control. It can be customized with different output ratings, reversing modes, display functions, and communication options to fit specific process requirements.

Technical Specifications
  • Input Power: single-phase 220V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0±12V continuously adjustable
    • Current: DC 0±100A continuously adjustable
    • Power: Max 1.2KW (12V *100A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
