Solid Carbide End Mill for CNC Milling Metal Components Precision Slotting and Edge Profile Machining

Solid Carbide End Mill for CNC Milling Metal Components Precision Slotting and Edge Profile Machining

Solid Carbide End Mill for CNC Milling Metal Components Precision Slotting and Edge Profile Machining
Solid Carbide End Mill for CNC Milling Metal Components Precision Slotting and Edge Profile Machining
Categories Carbide Rotary Burr
Model Number: A/B/C/D/E/F/G/H/J/K/L/M/N
Coercive Force: 250-280 Oersteds (19.89-22.3 KA/m).
Supply Ability: ＞300000 Pieces per Month
Chemical Composition: Tungsten Carbide (WC) 88-90%
Payment Terms: T/T
Hardness: 1500-1650 HV30 (HRA91.2-92.2).
Average Tungsten Carbide Grain Size(F.S.S.S): 0.6-0.8 micron.
MOQ: 100 pcs
Delivery Time: 7-15 Days
Magnetic Saturation: 134-160 Gauss cm³/g (CoM 8.4-10.0%).
Packaging Details: Plastic or aluminum box
Price: CN¥8.36-27.79
Density: 14.9-15.0 g/cm³.
Average Carbide Grain Size: 0.6-0.8 micron.
Certification: ISO9001-2008
Place of Origin: Sichuan, China
Brand Name: KINGTOOLS
Transverse Rupture Strength on Polished Test Piece: ≥3200N/mm²
Contact Now
Company Info.
JOINT CARBIDE CO., LTD.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Solid Carbide End Mill for CNC Milling Metal Components Precision Slotting and Edge Profile Machining

PRODUCT HIGHLIGHTS
  • 1. 100% Virgin Raw Materials: Utilizing 100% tungsten steel raw materials (non-recycled materials) ensures the purity and performance stability of the cutting tools from the very beginning.
  • 2. Submicron-scale fine particle structure: The average tungsten carbide grain size is controlled at 0.6-0.8 micrometers, ensuring the tool exhibits extremely high compactness and wear resistance.
  • 3. Excellent hardness performance: The hardness range covers HRA 91.2 - 92.2 (approximately 1500-1650 HV30), with the capability to process materials with a maximum hardness of HRC 65.
  • 4. Extremely high transverse rupture strength (TRS): With a transverse rupture strength of 3200 N/mm² or higher, it performs stably in high-speed machining, making it less prone to chipping or breaking.
  • 5. Advanced nano-coating technology: Provides three high-performance coatings: AlTiN (black), TiSiN (bronze), and TiAlSiN (nano blue), significantly enhancing the heat resistance and service life of cutting tools.
  • 6. Five-axis CNC precision grinding: With approximately 300 sets of five-axis CNC machine tools, we ensure the geometric accuracy of each milling cutter, the smoothness of the chip flute, and the consistency of the cutting edge.

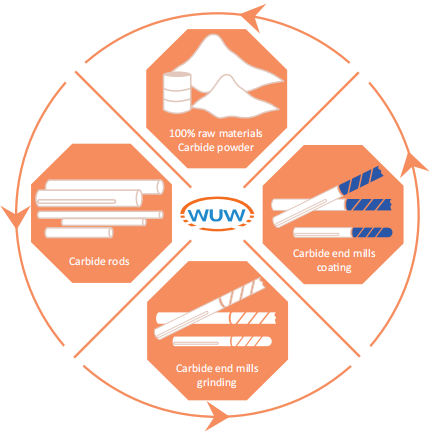

  • 7. Advantages of full industry chain integration: We independently develop and produce the entire process from tungsten carbide powder, bars to finished milling cutters, ensuring strong quality controllability and cost competitiveness.
  • 8. Wide material applicability: One tool can efficiently handle a variety of materials such as stainless steel, titanium alloy, aluminum alloy, cast iron, copper, wood, and plastic.
  • 9. Extraordinary production capacity and stable delivery: With a daily production capacity of 25,000 to 30,000 tungsten carbide rotary files, we are able to quickly respond to high-volume orders from around the world.
  • 10.18 Years of Global Service Experience: With over 18 years of industry accumulation, our services have covered dozens of countries including Russia, South Korea, the United Kingdom, Brazil, etc., and our quality has been verified by the international market.
Tungsten Carbide End Mill
How to Choose the Most SuitableCarbide End Mills ?

1.Applied Material:Stainless steel, iron, bronze, copper, aluminium,tanium alloy, wood, plastic

2.Cut Style / HRC:Flat end mill / Ball nose end mill /Corner Radius end mill
HRC 45 / 55 / 65

3.Diameter and Length:Metric size:Inch size

4.Coating:AlTiN (black) / TiSiN (bronze) /TiAlSiN (nano blue)
PRODUCT DISPLAY

Rods Report
Chemical Composition
Tungsten Carbide (WC) 88-90%Other Carbides 1.0-2.0%Cobalt (Total Binder content) 9-10%
Physical Properties
Hardness: 1500-1650 HV30 (HRA91.2-92.2).
Density: 14.9-15.0 g/cm³.
Average Carbide Grain Size: 0.6-0.8 micron.
Average Tungsten Carbide Grain Size(F.S.S.S): 0.6-0.8 micron.
Magnetic Saturation: 134-160 Gauss cm³/g (CoM 8.4-10.0%).
Coercive Force: 250-280 Oersteds (19.89-22.3 KA/m).
Transverse Rupture Strength on Polished Test Piece: ≥3200N/mm²
PRODUCT APPLICATION SCENARIO

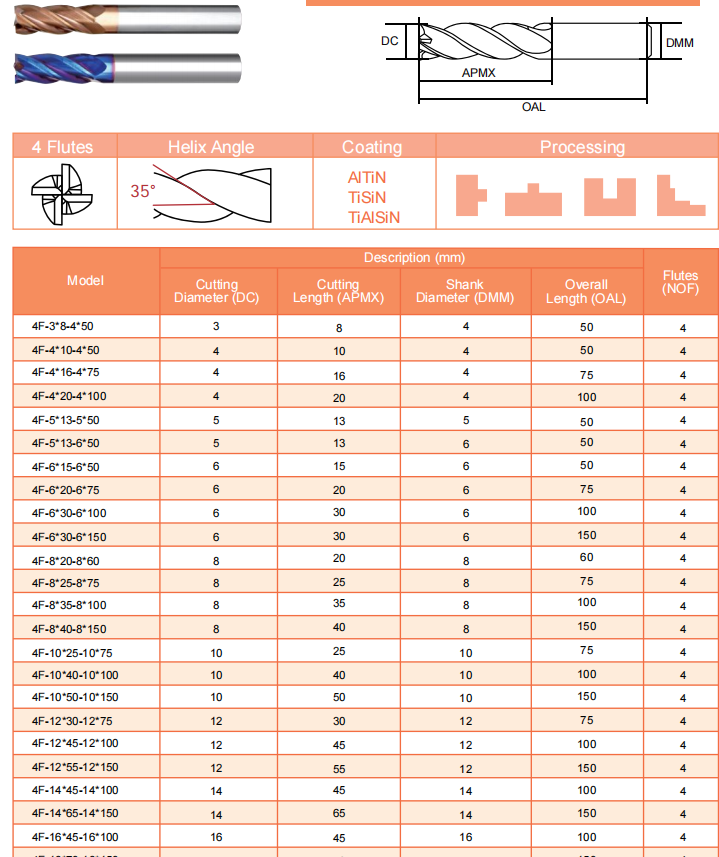

FLAT / SQUARE END MILL

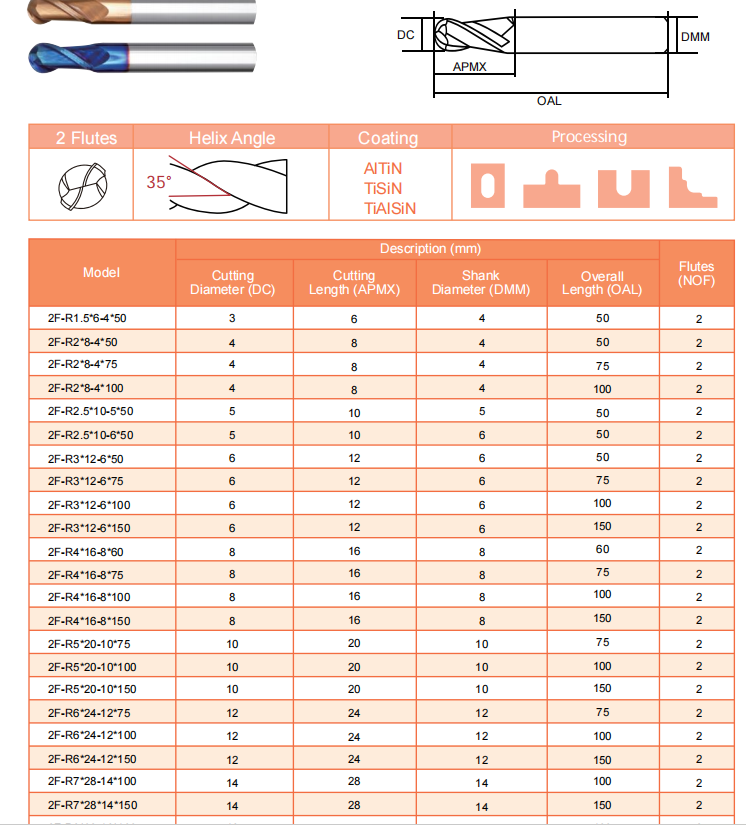

BALL NOSE END MILL
CORNER / BULL NOSE END MILL
ALUMINIUM END MILL
Company Information
Chengdu Joint Carbide Co.,Ltd Established on January 21, 2019, Zigong Joint Carriage Co., Ltd. is the sales subsidiary of Itd in Chengdu. We are a manufacturer of hard alloy cutting tools, established in 2007, covering an area of nearly 20000 square meters. We are a high-tech enterprise that integrates research and development, production, and sales (certificate number GR201951000516). We produce hard alloy cutting heads, rotating burrs, tungsten composite rods, hard alloy drill bits, hard alloy rods, rotating burrs blanks, and other hard alloy products from China.
We have introduced More than 430 German five axis five linkage CNC tool grinders and three coordinate optical tool detectors. The daily production can reach 25000-30000 pieces. We are the only rotary file enterprise in China that independently produces the entire process from raw materials to finished products. Currently, our company has become the largest rotary file production base in the country. Provide high-precision, high-speed, and efficient solutions for hard alloy products and metal polishing in the mechanical manufacturing industry.
We have the world's advanced raw material hard alloy formula technology, optimized advanced manufacturing processes, and the largest scale production equipment.
Our mission :Is to provide the best overall polishing solution for the mechanical manufacturing industry,
Our vision: to become the world's largest production base for grinding and cutting tools;
