360° Adjustable Brass Impact Sprinkler System | Large Flow Anti-Clog For Farm & Mining

Categories Agricultural Irrigation System
Spray Radius / Range: 20.0m – 62.8m (65.6 ft – 206 ft)
Capacity Range: 0.25 - 200 Tons/Hour
Working Pressure Range: 2.5 – 8.0 bar (36 – 116 PSI)
Drive Mechanism: Heavy-Duty Rocker Arm / Impact Driven Mechanism
Inlet Connection Size: 1.5" Male Thread, 2" Male Thread, 2.5" Female Thread, 3" Flange
Model Number: IGRO
Certification: ISO, CE
Place of Origin: Fujian
MOQ: 10sets
Spraying Angle Adjustment: 20° – 360° Adjustable (Supports Part-Circle and Full-Circle Rotation)
Brand Name: IGreen
Material: Premium Cast Brass / Cast Aluminum / High-Strength Engineering Plastic (ABS & Nylon)
Flow Rate Capacity: 7.0 – 92.3 m³/h
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

360° Adjustable Brass Impact Sprinkler System | Large Flow Anti-Clog For Farm & Mining

360° Adjustable Brass Impact Sprinkler System | Large Flow Anti-Clog For Farm & Mining
Product Overview
Large-scale impact sprinkler system in agricultural field

The Large-Scale Impact Sprinkler System is a classic, high-performance solution designed for broad-acre agricultural irrigation. Built from high-strength engineering plastic, cast aluminum, or corrosion-resistant premium brass, these sprinklers are engineered to meet long-range, full-coverage watering demands.

The system delivers uniform water distribution and flexible angle adjustments. Its rugged mechanical structure allows direct mounting on mobile tripods or fixed underground piping. Thanks to its heavy-duty design, it operates reliably even when using high-sediment or poor-quality water, making it a highly cost-effective choice for modern agriculture.

Core Advantages
Close-up view of impact sprinkler mechanism
  • Long-Range Coverage: Features an effective spray radius of 30 to 50+ meters, significantly reducing field piping infrastructure and setup costs.
  • High-Flow Efficiency: Delivers massive water volume to accelerate irrigation cycles and maximize farming productivity.
  • Adjustable 20°-360° Spray: Equipped with a dedicated limit lever to easily customize part-circle or full-circle coverage for irregular field layouts.
  • Superior Anti-Clogging: Designed with a large, straight-through flow passage that resists blockages, making it ideal for raw river, pond, or ditch water.
  • Stable & Low Maintenance: The proven impact-driven mechanism ensures a minimal failure rate and long-lasting continuous outdoor operation.
Technical Specifications & Models

We offer three material variants to match your budget and water quality: Engineering Plastic (lightweight & chemical-resistant), Cast Aluminum (balanced value & durability), and Cast Brass (ultimate wear resistance for saline/sandy water).

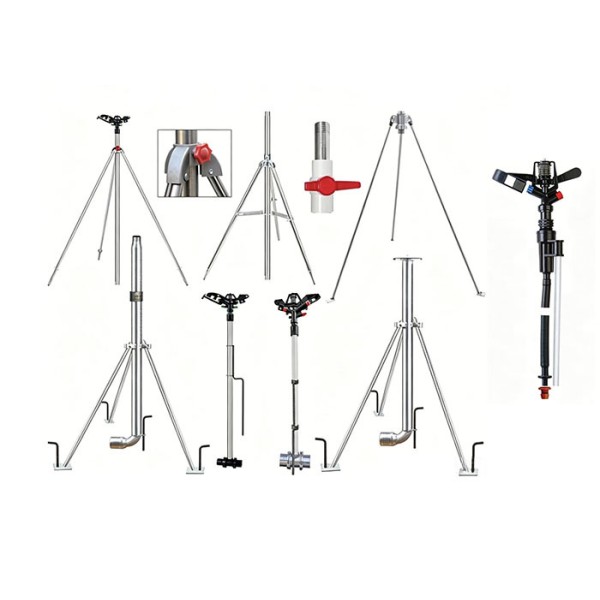

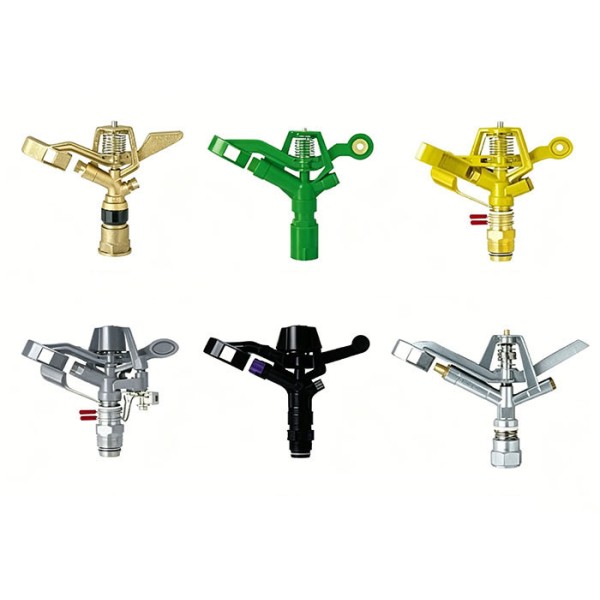

Cast aluminum sprinkler model Brass sprinkler components Sprinkler installation example
Cast Aluminum Series (Medium to High Pressure)
ModelSizeRange (m)Work Pressure (bar)Flow Rate (m³/h)
IG30-L401.5" M20.0-36.52.5-5.07.4-23.5
IG30-L502" M34.5-49.24.0-8.023.9-53.2
IG45-L502" M33.0-46.54.0-8.023.9-53.2
IG40-F803" Flange38.3-55.44.0-8.032.1-92.3
IG45-L803" F45.5-62.85.0-8.032.1-92.3
Heavy-Duty Cast Brass Series (Maximum Durability)
ModelSizeRange (m)Work Pressure (Kgf/cm²)Flow Rate (m³/h)Nozzle (mm)
90151.5"22-283.0-4.57-1110
90202"26-324.0-6.018-1912
90252.5"32-465.0-8.025-3014
Wide Range of Applications

Our agricultural sprinkler systems perform exceptionally well across diverse terrains (flatlands or gentle slopes ≤ 20°) and various soil types:

  • Field Crops: Wheat, corn, cotton, sugarcane, and sugar beets
  • Orchards & Plantations: Fruit orchards, tea gardens, and rubber plantations
  • Livestock & Turf: Large pastures, grasslands, golf courses, and municipal green spaces
Get Your Free Customized Irrigation Design!

Looking for a tailored watering layout? Simply send us your farm dimensions, greenhouse blueprints, or field layouts. Our professional engineering team will provide a FREE customized irrigation system design that perfectly balances performance, crop safety, and cost-efficiency.
