Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment

Categories	Screw Auger Conveyor
Model Number:	Kai001
Package Size:	800.00cm * 50.00cm * 100.00cm
Payment Terms:	T/T,Western Union
Usage:	Conveyor
Dimension(LWH):	Customized
Price:	US$10,000~US$20,000 per pc
Function:	Transmission System
Material Feature:	Heat Resistant, Fire Resistant
Supply Ability:	10,000 pieces per month
Material:	Stainless Steel
Specification:	Customized
Applicable Industries:	Manufacturing Plant, Food & Beverage Factory...
MOQ:	1 pc
Delivery Time:	20~35 working day
Speed:	High Speed
Feature:	High Efficiency
Place of Origin:	china
Structure:	Conveyor System
Packaging Details:	Wooden Case
Application:	Chemical Industry, Grain Transport, Mining Transport, Power Plant
Certification:	CE/UL
Package Gross Weight:	200.000kg
Brand Name:	WeSeW
Machinery Test Report:	Provided

Contact Now

Add to Cart

Company Info.

Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment

Custom Rotary Drum Screens

Customized rotary screens are available for wastewater treatment, industrial, and agricultural applications. Factory direct sales.

Productivity 1000L/Hour

Processing Type Filtration

Voltage 380 V

Power 1 kW

Core Components Motor

Warranty 1 Year

Weight 1000 kg

Brand Name Ryde

Use Solid-liquid separation

Material SS304/SS316

Grid Gap 0.5mm-5mm

Optional Customize

Water Flow Rate 80-6750m³/h

Drum Diameter 600mm-2600mm

Drum Length 600mm-2400mm

Power Range 0.75kw-3kw

Product Overview

Widely used in inlets containing floating objects, such as river channels, bar screen wells, water pumping stations, hydropower stations, waterworks, power plants, and steel mills. Effectively intercepts sediments and dregs from sewage for preliminary purification, ensuring normal operation of subsequent treatment processes.

Ryde 2G Rotary Drum Screen is widely applied for wastewater treatment projects including urban wastewater, industrial wastewater, food processing industry, and paper industry. This equipment effectively removes scum, short fibers, and suspended matter from water intake, discharging them after dewatering. Suitable for high-precision processes with small grid gaps and low canal depth requirements.

Key Features

Low hydraulic loss, high efficiency, and large processing capacity
Complete stainless steel structure for easy maintenance and long service life
Self-cleaning working mechanism for continuous operation
Multi-functional system with compact structure design

This equipment integrates four functions: intercepting dregs, removing dregs, spiral lifting, and pressing dewatering. Mounted in the canal at a 35-degree angle, wastewater flows into the drum from the inlet port. Water flows out from the drum side while the grid intercepts dregs. The drum rotates at a fixed speed, with nylon brush and flush water spray nozzle systems removing dregs and exporting them through spiral lifting. Dehydrated dregs are delivered to containers or transportation equipment in a clean, odor-free process.

Product Gallery

Ryde rotary drum screen installation view

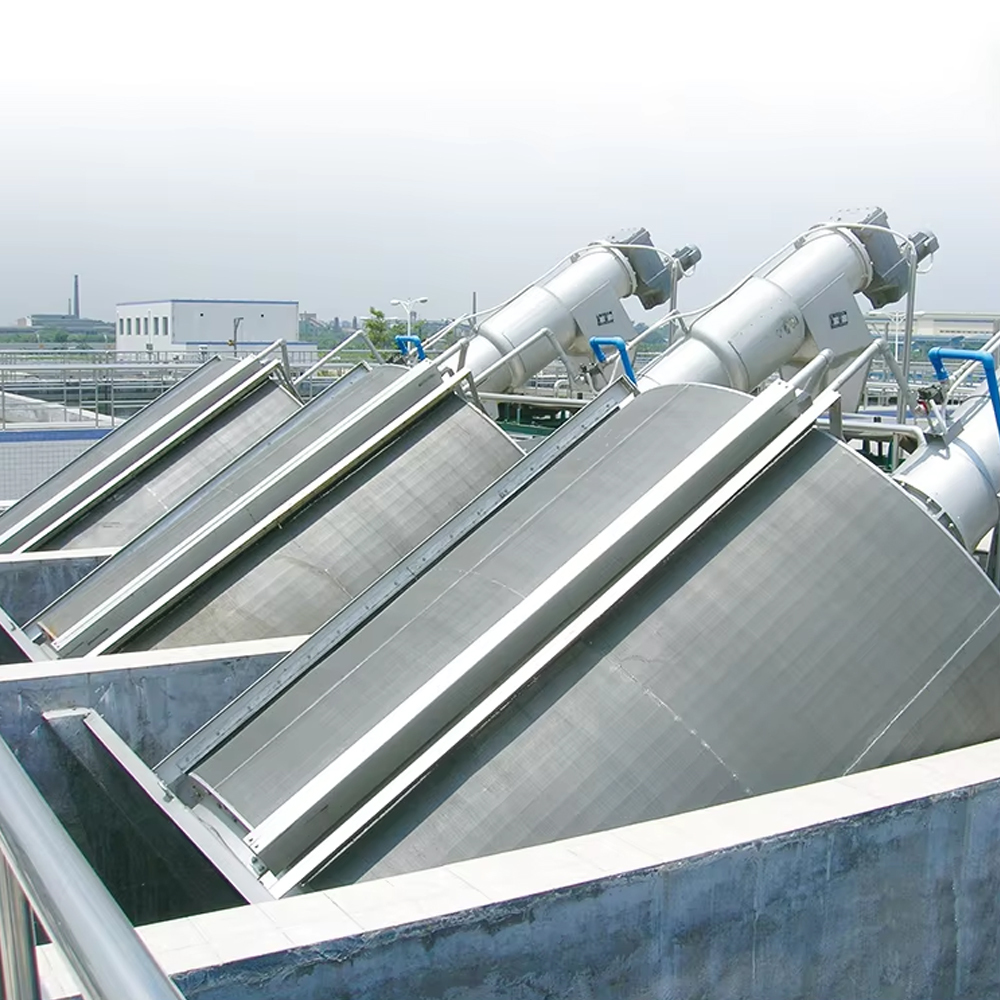

Industrial wastewater treatment application

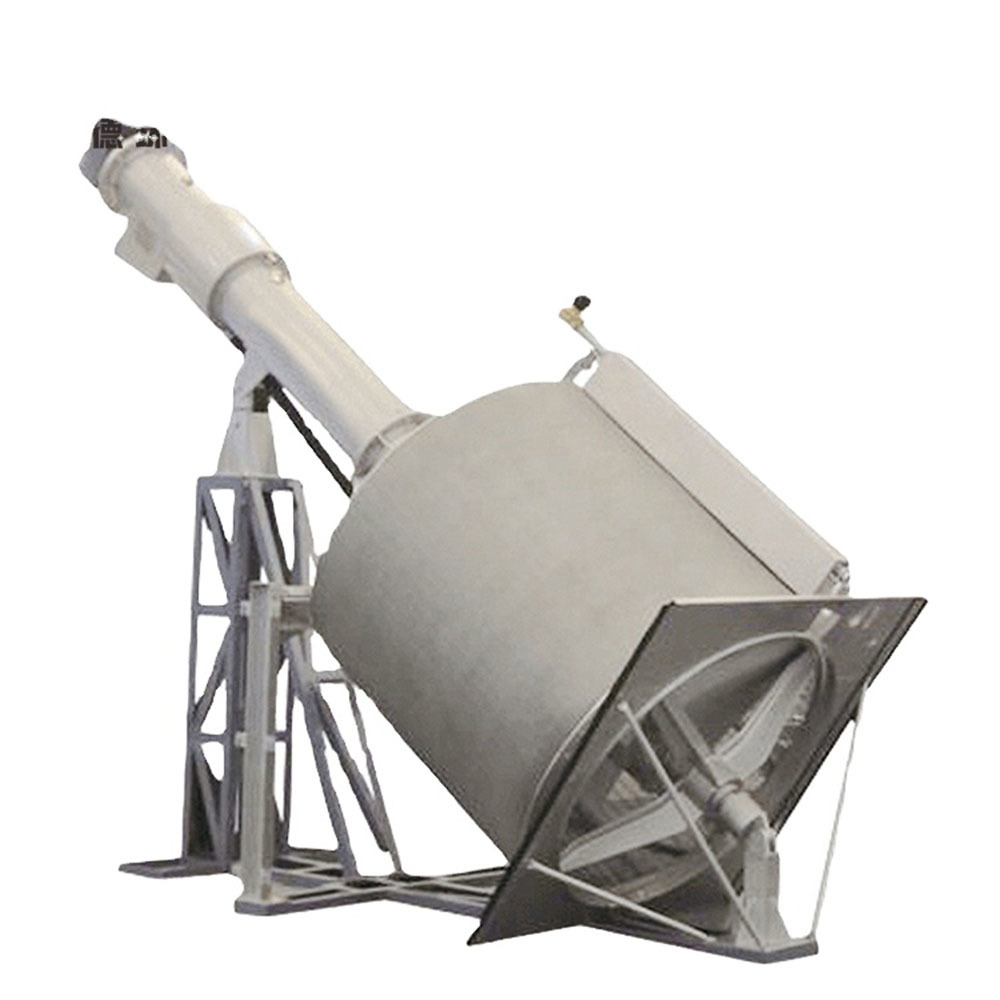

Custom rotary screen manufacturing detail

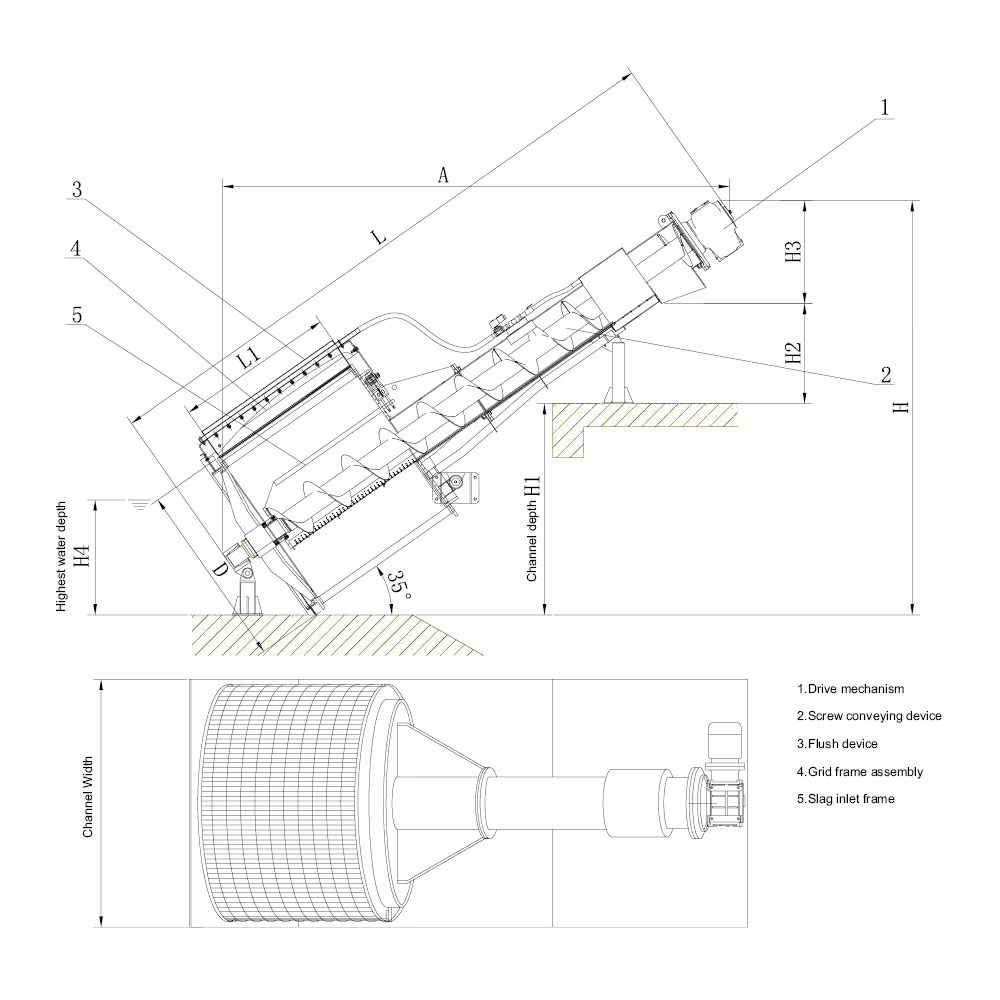

Ryde drum screen technical specifications

Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
