Quick-install Design Tri-Clamp Butterfly Valve with IoT Mini Actuator for Data Center Liquid Cooling

Quick-install Design Tri-Clamp Butterfly Valve with IoT Mini Actuator for Data Center Liquid Cooling

Quick-install Design Tri-Clamp Butterfly Valve with IoT Mini Actuator for Data Center Liquid Cooling
Quick-install Design Tri-Clamp Butterfly Valve with IoT Mini Actuator for Data Center Liquid Cooling
Categories Electric Control Valve
Valve Materal: SS304/316
Model Number: EB-50
Driving Mode: Electric
Price: 1
Media: Water / Glycol
Certification: CE, RoHS, SIL
Duty Cycle: 100% ED (Continuous)
Place of Origin: China
Modulation Accuracy: Less Than 0.3%
Mounting Type: Direct Mount / Flange Mount
MOQ: 1
Media Temperature: 0-120℃
Payment Terms: T/T
Hysteresis: <0.5%
Supply Ability: 1000
Operating Temperature: -20°C to +60°C
Brand Name: GRAT
Contact Now
Company Info.
Wuhan Grat Control Valve Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Quick-install Design Tri-Clamp Butterfly Valve with IoT Mini Actuator for Data Center Liquid Cooling

Quick-install Design Tri-Clamp Butterfly Valve with IoT Mini Actuator for Data Center Liquid Cooling
This IoT Tri-Clamp Butterfly Valve is engineered for CDU liquid cooling smart control applications. Constructed from food-grade sanitary stainless steel with a tri-clamp quick-fit structure, it enables effortless installation and disassembly while eliminating dead corners. The integrated IoT communication module supports remote on-off control via mobile devices and cloud platforms, along with real-time monitoring of pressure and valve status data. Featuring exceptional sealing performance, corrosion resistance, and high pressure tolerance, this valve offers wiring-free installation and low power consumption for extended battery life. Ideal for intelligent fluid control in water supply, chemical, food, pharmaceutical, and agricultural irrigation pipeline systems.

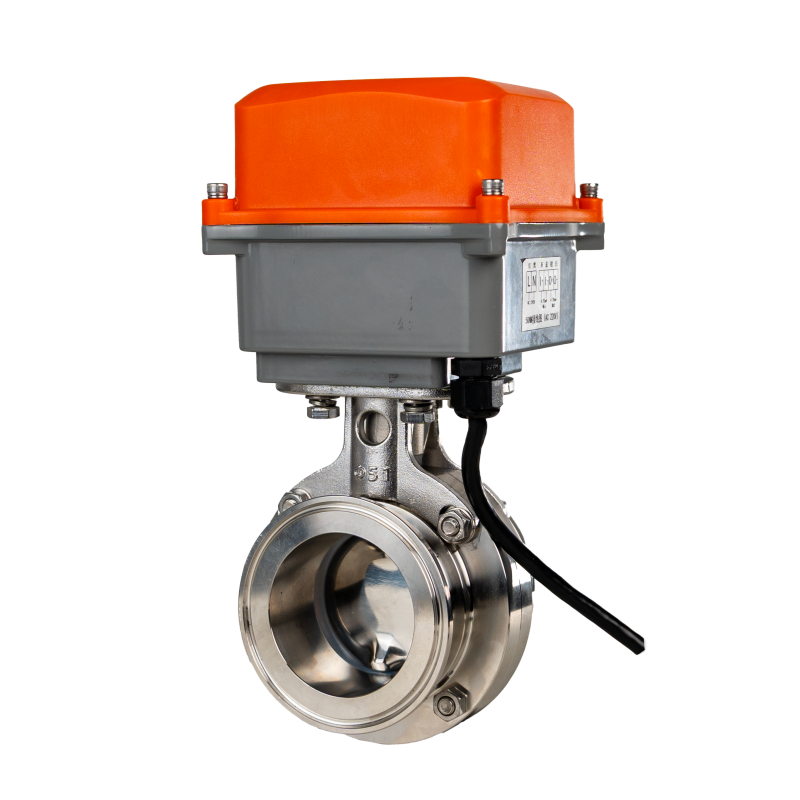

Tri-Clamp Butterfly Valve with IoT Mini Actuator for liquid cooling systems
Key Features
  • IoT Intelligent Management & Control: Remote wireless monitoring, flow regulation, status feedback, and fault alarm capabilities
  • Tri-clamp Quick-install Design: No complex connections required; easy assembly and disassembly; ideal for narrow computer room spaces and rapid deployment
  • Gas-tight Zero Leakage: Excellent sealing performance prevents liquid cooling media leakage, ensuring system safety and stability
  • Low Power & Long-term Operation: Brushless motor with low power consumption and noise levels supports 24/7 continuous operation with extended service life
Technical features of Tri-Clamp Butterfly Valve
Main Parameters
ParameterSpecification
Working Power SupplyAC220V / DC24V
Nominal DiameterDN15~DN150
Medium Temperature-15~100℃
Working PressurePN10
Control ModeRegulating / On-off Control
Connection TypeClamp Connection (ISO2852-1993)
Valve Body Material304 Stainless Steel
Seat / Seal MaterialEPDM
Seal TypeSoft Seal
Applicable MediumFood, Pharmaceutical, Chemical Industry, etc.
Protection GradeIP65
Design & Manufacturing StandardGB/T12237
Clamp StandardISO2852-1993
Inspection & Test StandardGB/T26480-2011
Dimension Drawing
DNdKDLFH
DN159.525.412.7749×937
DN201750.5221009×941
DN2522.250.525.41209×946
DN3228.650.5321309×949
DN4034.950.538.11409×954
DN5047.66451.516511×1167
DN6559.577.563.519011×1186
DN8072.29176.221514×1498.5
DN100851068922514×14110
DN12510011910826017×17137
DN15012514513329022×22165
Circuit Wiring Diagram
IoT Mini 24V DC Circuit Wiring Diagram
DC 24V
IoT Mini 220V AC Circuit Wiring Diagram
AC 220V
