| Categories | LED Landscape Spot Lights |
|---|---|
| Brand Name: | COMI LIGHTING |
| Model Number: | B3C0305(single), B3B0318(RGB),B3C0320(RGBW) |
| Certification: | CE, ROHS, EMC,LVD |
| Place of Origin: | Made in China |
| MOQ: | No MOQ |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100000pcs per month |
| Delivery Time: | 3-20days depends on order quantity |
| Packaging Details: | 24pcs/cartons |
| Product Name: | IP65 Outdoor Garden Spot Lights |
| Working Voltage: | 24VDC, or 100-240vac, 50/60Hz |
| Light Source: | 1x11W, or 3pcs x 3W or 4W CREE or Osram LED |
| Color or Color Temperature: | single, tunable white, RGB, RGBW |
| Power: | 9W,12W (RGBW), 12W |
| Luminous Flux: | 840 (12W COB LED) |
| Body Color: | Black, grey, white, silver and etc. |
| Finished treatment: | Powder coated |
| IP Rated: | IP65 waterproof for outdoor lighting |
| Installation accessories: | backet, spike, round base, tree strap for options |
| Optional Front Cover: | Front Cover with Visor/light shield |
| Warranty: | 3 years |
| Company Info. |
| COMI LIGHTING LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
IP65 Outdoor LED Landscape Lights 3x4W with Base (surface mount) or Spike (ground stake),or tree light mounting straps (mounted on tree by strap) and with optional Visor Optional 0-10V/ DALI dimming or DMX512 Control support
The COMI SPOT LIGHT IP66 B3C-Series is suitable for emphasis lighting indoors as well as outdoors. Combined with a round base, or ground spike, or tree light mounting straps, or glare shield, it is also perfect for plant and garden lighting
Features and Benefits:
▪ Light source:1x10W CREE COB LED, or 3x3W or 3x4W LED
▪ Power: 12W(Mono), 9.6W(RGB 3-in-1), 12.5W (RGBW 4-in-1).
▪ Input voltage: 24VDC or 110-240Vac.
▪ Color: Mono color, RGB, RGBW.
▪ Beam angle: 8°, 10°, 15°, 30°,45°, 60°.
▪ Materials: Aluminum alloy
▪ Project angle Up to down adjustable and horizontal 360°
rotatable.
▪ Installation by Round base.
Optional accessory: Ground spike(PVC), tree strap, glare
shield(visor).
▪ Optional housing color: Black,anodized aluminum, matt silver,
copper.
▪ Optional DALI, 1-10 V, PWM, TRIAC or DMX 512 controllable
support.
▪ IP66 and IK04 rating.
▪ 2 Years warranty.
Material specifications:
| Housing | Aluminum anodized finishing or powder painting |
| Lens | Optical lens, efficiency ≥ 85% |
| Glass | Tempered glass. T=3mm |
| Cable gland | Copper and nickel coated |
| Gasket | Tooling shaped seal |
| LED | TO type power LED for RGB, single color is Osram or CREE LED |
| PCB | Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
| Driver | Constant current output |
| Operating temperature | -20℃~40℃ |
| Power cable | Constant current output Single color LED=1-circuit output RGB 3in1 LED =3-circuit output |
| Cable | H05RN-F 2X1.0mm² , L=2m (low voltage) H05RN-F 3X0.75mm², L=2m (high voltage) H05RN-F 4X0.75mm², L=2m (for RGB) |
Technical Specifications of LED Landscape Spotlights:
| Item Number | Light Source | Color | Lens Degree (Θ1/2)(°) | CRI (Ra) | Input Voltage(V) | Typical Operating (mA) | Typical Power (W) | Luminance (lm) | IK Rate | Optional Mounting Accessories |
| B3DX0405H | 4×4W CREE or OSRAM LED | Single Color | 8°,15°, 25°, 40°, 60° | Ra>80 | 24VDC 110-120V 220-240V | 24V=525mA 110V=115mA 240V=53mA | 15W | 1123 | 04 | Round Base, Spike, Tree Strap |
| B3DX0120H | 1×20W CREE COB LED | Single Color | 15°,25°, 40°, 56°, 10x60°, 20x30° | Ra>80 | 24VDC 110-120V 220-240V | 24V=520mA 110V=111mA 240V=51mA | 16W (max 20W) | 1160 | 04 | Round Base, Spike, Tree Strap |
| B3DX0418H | 4×3W RGB 3-in-1 full color LED | RGB Color | 13°,25°, 40°, 60° | / | 12/24VDC | 766mA (12VDC) | 12W | 222 | 04 | Round Base, Spike, Tree Strap |
| B3DX0420H | 4×4W RGBW 4-in-1 full color LED | RGBW Color | 13°,25°, 40°, 60° | / | 12/24VDC | 508mA (24VDC) | 16W | 480 | 04 | Round Base, Spike, Tree Strap |
Notes:
1. "X" in item number stands for mounting accessories for IP66
outdoor led flood spot lights:
X | Mounting Accessories | Mounting Method |
M | Round base | Surface mount on ground, wall, or ceiling |
B | Spike | Ground |
T | Tree Strap | Tree mounted by strap |
2. Color: Single color 2000,2400K, 2700K, 3000K, 4000K,6000K, Red,
Blue, Gree, RGB, RGBW
3. Specifications are subjected to change without notice.

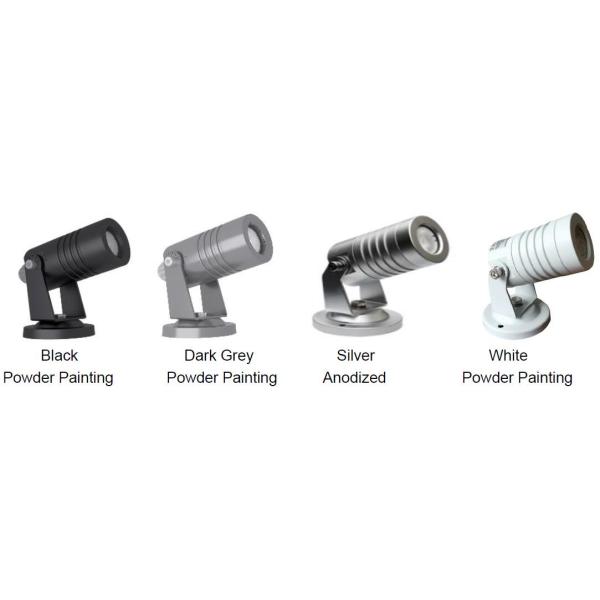

Finished Body color options for IP65 / IP66 LED Garden Spotlights
Body color available: black, dark grey, silver, white,copper and etc.
|
