UL 2157 Test Finger Probe 4 Pieces as One Kit Stainless Steel Finger
Standard:
UL 2157 Electric Clothes Washing Machines and Extractors clause 6.1, 6.2, 6.3, 15.8.4 and 26.6.1.3, figure 1, figure 2, figure 3, and figure 4.
Application:
It is used for protection against accessibility to current-carrying parts. Test Finger Probe
Parameter:
| Finger length | Figure 1: 97mm |
| Figure 2: 101.6mm | |
| Figure 3: 80mm | |
| Figure 4: 101.6mm |
Consist of:
Figure 1 Articulated probe with web stop;

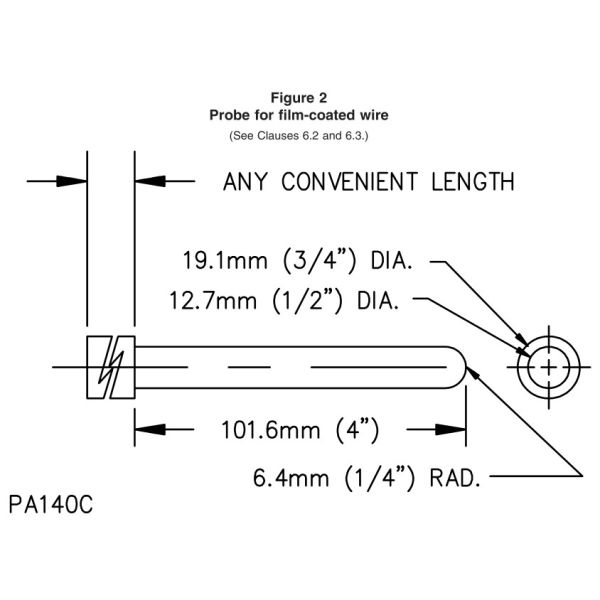

Figure 2 Probe for film-coated wire;
Figure 3 IEC accessibility probe with stop plate;
Figure 4 Probe for uninsulated current-carrying parts;
|
Nylon Handle Figure 1 50mm Sphere Test Finger Probe A
IEC Lab Test Instrument 2.5mm Rod Figure 3 Test Finger Probe C
Ф1.0mm Wire IEC Figure 4 Terminal Test Probe D
