Casun Integrated Stepper Motor 550mN.M Open Loop Integrated Motor For Automation Machine

Categories NEMA 17 Stepper Motor
Brand Name: Casun
Model Number: 42SHD4456-24DH
Certification: CE,ROSH,ISO
Place of Origin: CHINA
MOQ: 1PC
Price: $18-$28
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Delivery Time: 7-15 days
Packaging Details: Carton:36x29x14cm
Step angel: 1.8°
Holding Torque: 550mN.m
Current: 1.68A
Motor Length: 48mm
Shaft: Milling Flat Shaft 24mm Length
Customized: The motor can be designed &manufactured with customized request.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Casun Integrated Stepper Motor 550mN.M Open Loop Integrated Motor For Automation Machine

Casun Integrated Stepper Motor 550mN.M Open Loop Integrated Motor For Automation Machine
Casun integrated Stepper motor 550mN.m 3.74V DC Nema 17 Hybrid Stepper Motor 42x42x48mm with factory price.
Integrated motor refers to a motor system that incorporates multiple components or functions into a single unit. It typically combines the motor itself with various other elements such as sensors, controllers, and power electronics, creating a compact and self-contained system.
The integration of these components offers several advantages over traditional motor setups, including improved performance, reduced size and weight, simplified installation, and enhanced efficiency. By integrating the motor with other components, the system can be optimized for specific applications, resulting in better overall performance.
Integrated motors are commonly used in various industries and applications, including robotics, automation, automotive systems, medical devices, and industrial machinery. They can be found in applications such as robotic arms, CNC machines, electric vehicles, pumps, fans, and many others.
Key Features
  • Bipolar or unipolar versions available
  • For high-tech industry and electronic industry equipment
  • Available in single or double shaft versions
  • Multiple international certifications
  • Professional research and development manufacturing
Product Appearance
Casun Integrated Stepper Motor appearance view
Product Dimensions

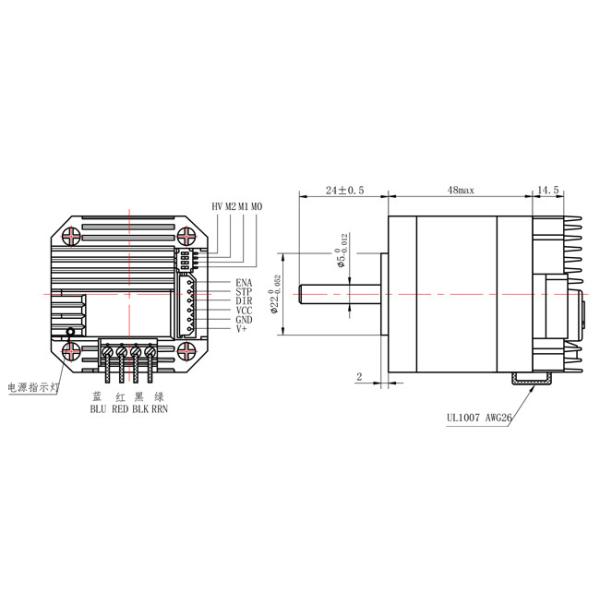

Casun Integrated Stepper Motor dimensional drawing
Motor Specifications
Step Angle1.8°
Frame Size42 mm
Number of Phase2 Phase
Rated Current1.7 A
Holding Torque550 mN.m
Resistance1.8 ohm
Inductance4.5 mH
Rotor Inertia2.2 g-cm²
Motor Weight0.38 kg
Number of Leads4
ConnectionBipolar
Operating Specifications
Step Angle1.8°
Maximum Temperature80°C maximum
Ambient Temperature-20°C to 50°C
Storage Temperature-20°C to 100°C
Humidity Range85% or less, non-condensing
Magnet Wire InsulationClass B 130°C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min
Available Submodels
ModelHolding TorqueStep AngleMotor LengthType of ShaftRated Current
42SHD49500.13N.m1.8°20mmD Shaft-20mm1.0A
42SHD40030.26N.m1.8°34mmD Shaft-20mm0.4A
42SHD02610.45N.m1.8°40mmD Shaft-20mm1.68A
42SHD44250.59N.m1.8°48mmD Shaft-24mm2.0A
42SHD48130.8N.m1.8°60mmD Shaft-24mm2.1A
Customization Options
Encoder
Encoder option for stepper motor
Brake
Brake option for stepper motor
Gearbox
Gearbox option for stepper motor
Shaft
Shaft option for stepper motor
Need Customization?
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
